OL3392L - 1310nm MQW DFB Laser Diode Uncooled Module with Single Mode Fiber

Datasheet Summary

Description

The OKI OL3392L is a 1310nm DFB Laser Diode in a PCB mountable coaxial package with single mode fiber and without isolator.

Features

SMF output: 1mW.
Wide operating temperature range.
MQW process.

OKI electronic componets

📥 Download Datasheet

Datasheet Details

Part number	OL3392L
Manufacturer	OKI electronic componets
File Size	43.23 KB
Description	1310nm MQW DFB Laser Diode Uncooled Module with Single Mode Fiber
Datasheet	OL3392L Datasheet

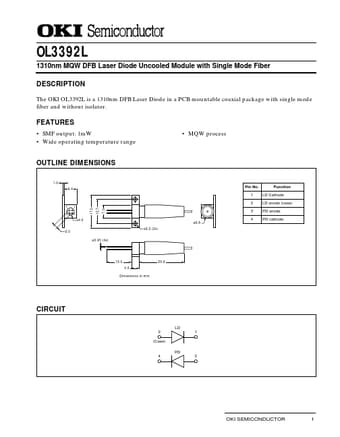

Additional preview pages of the OL3392L datasheet.

📁 Similar Datasheet

Other Datasheets by OKI electronic componets

OL3300N-05 - Surface Mount Laser Diode Modules (1310 nm / 0.5 mW)
OL3301N-05 - Surface Mount Laser Diode Modules (1310 nm / 0.5 mW)
OL3200N - 1.3 m Laser-Diode DIP Module
OL3200N-5 - 1.3 m High-Power Laser-Diode DIP Module
OL3201N-40 - 1.3 m High-Power Laser-Diode DIP Module
OL3204N-100 - 1.3 mm High-Power DIP Module with 9mm Profile
OL3204N-100P - 1.3 mm High-Power DIP Module with 9mm Profile
OL3204N-40 - 1.3 m High-Power Laser-Diode DIP Module

Full PDF Text Transcription

Click to expand full text

OL3392L 1310nm MQW DFB Laser Diode Uncooled Module with Single Mode Fiber DESCRIPTION The OKI OL3392L is a 1310nm DFB Laser Diode in a PCB mountable coaxial package with single mode fiber and without isolator. FEATURES • SMF output: 1mW • Wide operating temperature range • MQW process OUTLINE DIMENSIONS 1.0 6.4 Pin No. 1 2 17.0 12.7 7.0 2 1 3 4 Function LD Cathode LD anode (case) PD anode PD cathode 3 4 ø6.8 ø2.2 (2x) ø4.0 2.0 ø0.45 (4x) 13.0 4.0 Dimensions in mm. 23.
