KGF1156 - Small-Signal Amplifier

Product Overview

OKI electronic

📥 Download Datasheet

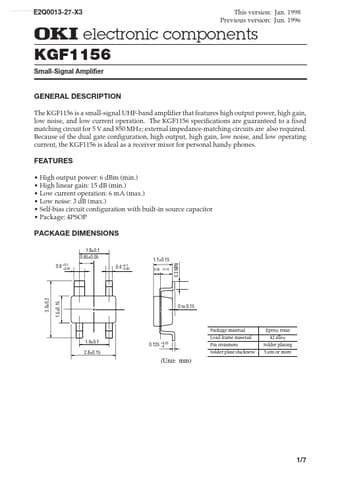

KGF1156 Small-Signal Amplifier by OKI electronic - Datasheet Preview — Datasheet preview – KGF1156

Datasheet Details

Part number	KGF1156
Manufacturer	OKI electronic
File Size	96.27 KB
Description	Small-Signal Amplifier
Datasheet	KGF1156 Datasheet
Additional preview pages of the KGF1156 datasheet.

Product details

Description

The KGF1156 is a small-signal UHF-band amplifier that

Features

high output power, high gain, low noise, and low current operation. The KGF1156 specifications are guaranteed to a fixed matching circuit for 5 V and 850 MHz; external impedance-matching circuits are also required. Because of the dual gate configuration, high output, high gain, low noise, and low operating current, the KGF1156 is ideal as a receiver mixer for personal handy phones.
