MSM14Q - (MSM13Q / MSM14Q) Sea of Gates Arrays

This page provides the datasheet information for the MSM14Q, a member of the MSM13Q (MSM13Q / MSM14Q) Sea of Gates Arrays family.

Datasheet Summary

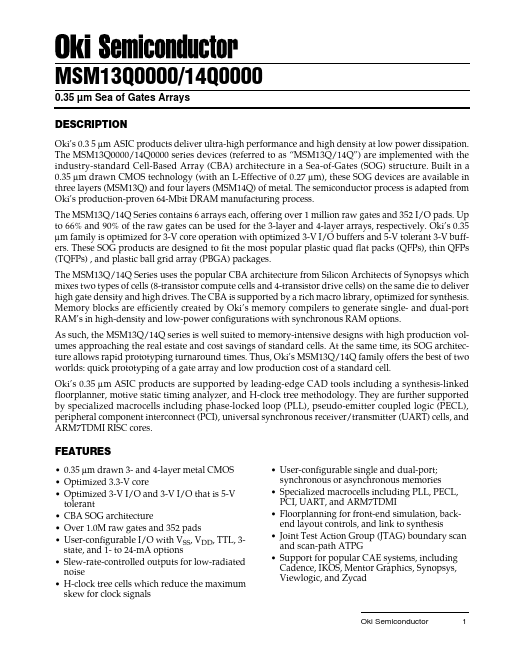

Description

Oki’s 0.3 5 µm ASIC products deliver ultra-high performance and high density at low power dissipation.

The MSM13Q0000/14Q0000 series devices (referred to as “MSM13Q/14Q”) are implemented with the industry-standard Cell-Based Array (CBA) architecture in a Sea-of-Gates (SOG) structure.

Features

  • 0.35 µm drawn 3- and 4-layer metal CMOS.
  • Optimized 3.3-V core.
  • Optimized 3-V I/O and 3-V I/O that is 5-V tolerant.
  • CBA SOG architecture.
  • Over 1.0M raw gates and 352 pads.
  • User-configurable I/O with VSS, VDD, TTL, 3state, and 1- to 24-mA options.
  • Slew-rate-controlled outputs for low-radiated noise.
  • H-clock tree cells which reduce the maximum skew for clock signals.
  • User-configurable single and dual-port; synchronous.

📥 Download Datasheet

Datasheet preview – MSM14Q

Datasheet Details

Part number MSM14Q
Manufacturer OKI electronic
File Size 242.83 KB
Description (MSM13Q / MSM14Q) Sea of Gates Arrays
Datasheet download datasheet MSM14Q Datasheet
Additional preview pages of the MSM14Q datasheet.

📁 Similar Datasheet

  • MSM10S0000 - 0.8um CMOS (OKI electronic componets)
  • MSM16811 - 1024-Bit Serial EPROM (OKI Semiconductor)
  • MSM16821 - 2048-Bit Serial EPROM (OKI Semiconductor)
  • MSM16831 - 1024-Bit Serial EPROM (OKI Semiconductor)
  • MSM16851 - 1024-Bit Serial EPROM (OKI Semiconductor)
  • MSM16911 - 1024 Bit Serial EPROM (OKI)
  • MSM-0305 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0309 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0312 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0315 - 1 WATT DC/DC CONVERTER (VOLGEN)
Other Datasheets by OKI electronic

Full PDF Text Transcription

Click to expand full text

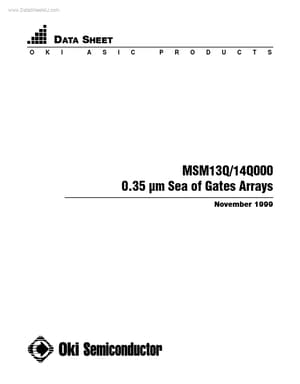

www.DataSheet4U.com DATA SHEET O K I A S I C P R O D U C T S MSM13Q/14Q000 0.35 µm Sea of Gates Arrays November 1999 s s ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Oki Semiconductor MSM13Q0000/14Q0000 0.35 µm Sea of Gates Arrays DESCRIPTION Oki’s 0.3 5 µm ASIC products deliver ultra-high performance and high density at low power dissipation. The MSM13Q0000/14Q0000 series devices (referred to as “MSM13Q/14Q”) are implemented with the industry-standard Cell-Based Array (CBA) architecture in a Sea-of-Gates (SOG) structure. Built in a 0.35 µm drawn CMOS technology (with an L-Effective of 0.27 µm), these SOG devices are available in three layers (MSM13Q) and four layers (MSM14Q) of metal.
