MSM60808

PCI to PCMCIA R2.1/CardBus Controller

MSM60808 Features

* PCI Local Bus Specification Rev. 2.1 Compliant

* PC Card Standard 95 Compliant

* PC Card auto-detect configuration

* 2-socket multifunction PCI device

* Intel 82365 register-compatible

* Power supply voltage +3.0~+3.6 V (core) +3.0~+3.6 V, +4.5~+5.5

MSM60808 General Description

1.1 PCI Interface 1.2 CardBus Card Interface 1.3 16-Bit Card Interface 1.4 Configuration 1.5 PC Card Registers 1.6 Determining Card Types 1.7 Address Decoding 1.8 Interrupts 1.9 Socket Power Control 1.10 Clock Control 1.11 Reset 1.12 ZV Port 1.13 Restrictions 2. Block Diagram 3. System Configuration.

MSM60808 Datasheet (462.05 KB)

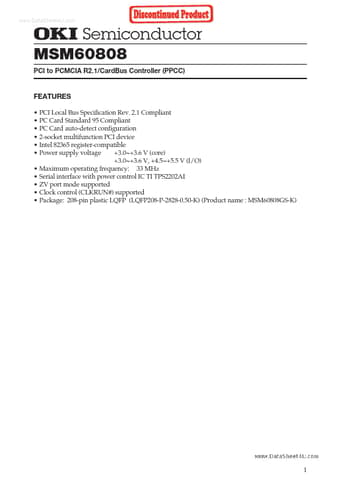

Preview of MSM60808 PDF

Datasheet Details

Part number:

MSM60808

Manufacturer:

OKI electronic

File Size:

462.05 KB

Description:

Pci to pcmcia r2.1/cardbus controller.
