MSM7510 - 300 bps Full Duplex FSK Modem - ITU-T V.21

Description

The MSM7510 is useful for the ITU-T V.21 modem, for examples, low cost built-in modems, telecontrol systems, home security systems, etc.

The family version, MSM7512B for ITU-T V.23, will be available following this device.

Features

  • Conforms to ITU-T V.21, 300 bps Full Duplex.
  • ITU-T V.25 Answer Tone (2100 Hz) with Generator/Detector.
  • Single Power Supply : +3 V to +5 V.
  • Low Power Consumption Operating Mode: 25 mW Typ. Power Down Mode : 0.1 mW Max.
  • Line Hybrid Circuit on Chip (direct drive capability of 600W).
  • ALB (Analog.
  • Loop back) with test mode.
  • 3.579545 MHz Crystal Oscillator.
  • Digital Interface: TTL.
  • Package options: 16-pin plastic.

📥 Download Datasheet

Datasheet Details

Part number MSM7510
Manufacturer OKI Electric
File Size 114.14 KB
Description 300 bps Full Duplex FSK Modem - ITU-T V.21
Datasheet download datasheet MSM7510 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MSM7533V 2ch Single Rail CODEC LAPIS
MSM7578V Single Rail CODEC LAPIS
MSM7582B QPSK MODEM LAPIS
MSM74017 Modulator / Demodulator for Modem Function in the Cellular Mobile Phone OKI Semiconductor
MSM7602 Echo Canceler OKI electronic componets

Other Datasheets by OKI Electric

Part Number Description
MSM7512B 1200 bps Half Duplex FSK Modem - ITU-T V.23
MSM7502 Multi-Function PCM CODEC
MSM7507-xx Single Rail CODEC
MSM7508B (MSM7509B) Single Rail CODEC
MSM7534 (MSM7533) 2ch Single Rail CODEC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

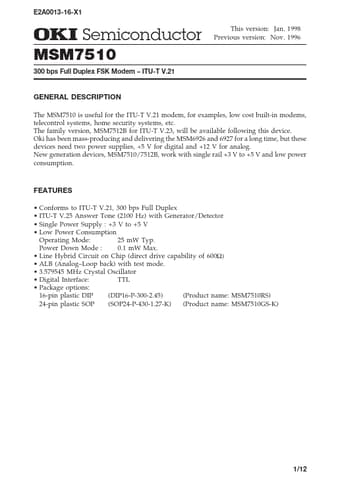

E2A0013-16-X1 ¡ Semiconductor MSM7510 Semiconductor 300 bps Full Duplex FSK Modem – ITU-T V.21 This version: Jan. 1998 MSM7510 Previous version: Nov. 1996 GENERAL DESCRIPTION The MSM7510 is useful for the ITU-T V.21 modem, for examples, low cost built-in modems, telecontrol systems, home security systems, etc. The family version, MSM7512B for ITU-T V.23, will be available following this device. Oki has been mass-producing and delivering the MSM6926 and 6927 for a long time, but these devices need two power supplies, +5 V for digital and +12 V for analog. New generation devices, MSM7510/7512B, work with single rail +3 V to +5 V and low power consumption. FEATURES • Conforms to ITU-T V.21, 300 bps Full Duplex • ITU-T V.
