MSM7570L-xx - Multi-Function ADPCM CODEC

Product Overview

OKI

MSM7570L-xx Multi-Function ADPCM CODEC by OKI - Datasheet Preview — Datasheet preview – MSM7570L-xx

Datasheet Details

Part number	MSM7570L-xx
Manufacturer	OKI
File Size	174.93 KB
Description	Multi-Function ADPCM CODEC
Datasheet	MSM7570L-xx Datasheet

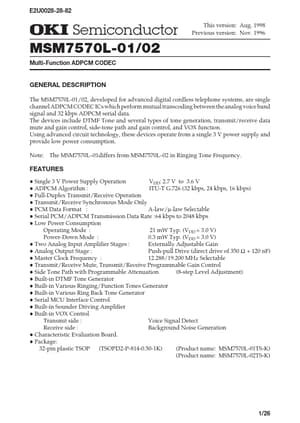

Additional preview pages of the MSM7570L-xx datasheet.

Product details

Description

The MSM7570L-01/02, developed for advanced digital cordless telephone systems, are single channel ADPCM CODEC ICs which perform mutual transcoding between the analog voice band signal and 32 kbps ADPCM serial data.

Features

Single 3 V Power Supply Operation VDD: 2.7 V to ␣ 3.6 V ITU-T G.726 (32 kbps, 24 kbps, 16 kbps).
ADPCM Algorithm :.
Full-Duplex Transmit/Receive Operation.
Transmit/Receive Synchronous Mode Only.
PCM Data Format : A-law/µ-law Selectable.
Serial PCM/ADPCM Transmission Data Rate :64 kbps to 2048 kbps.
Low Power Consumption Operating Mode : 21 mW Typ. (VDD = 3.0 V) Power-Down Mode : 0.3 mW Typ. (VDD = 3.0 V).
Two Analog Input.
