MSM82C54-2GS - CMOS PROGRAMMABLE INTERVAL TIMER

This page provides the datasheet information for the MSM82C54-2GS, a member of the MSM82C54-2 CMOS PROGRAMMABLE INTERVAL TIMER family.

Datasheet Summary

Description

The MSM82C54-2RS/GS/JS is a programmable universal timer designed for use in microcomputer systems.

Based on silicon gate CMOS technology, it requires a standby current of only 10 mA (max.) when the chip is in the non-selected state.

Features

  • six different counter modes, and binary count/BCD count functions. Count values can be set in byte or word units, and all functions are freely programmable.

📥 Download Datasheet

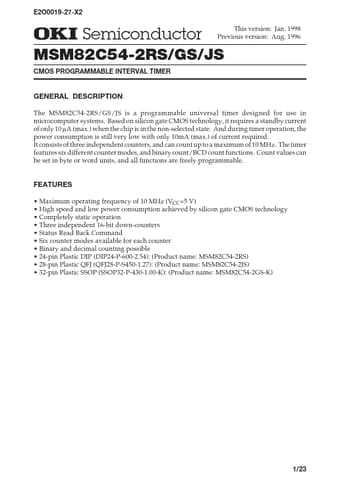

Datasheet preview – MSM82C54-2GS

Datasheet Details

Part number MSM82C54-2GS
Manufacturer OKI
File Size 187.00 KB
Description CMOS PROGRAMMABLE INTERVAL TIMER
Datasheet download datasheet MSM82C54-2GS Datasheet
