G3VM-61BR Datasheet - OMRON

G3VM-61BR - MOS FET Relays

G3VM-61BR/ER MOS FET Relays New Analog-switching MOS FET Relays Featuring a High Capacity of 2.5 A.

Switches minute analog signals.

Low ON-resistance of 0.1 Ω max.

Continuous load current of 2.5 A.

RoHS compliant Application Examples Test & Measurement equipment Security equipment Note: The actual product is marked differently from the image shown here.

Terminal Arrangement/Internal Connections 6 4 OMRON logo Pin 1 mark Model

G3VM-61BR-OMRON.pdf

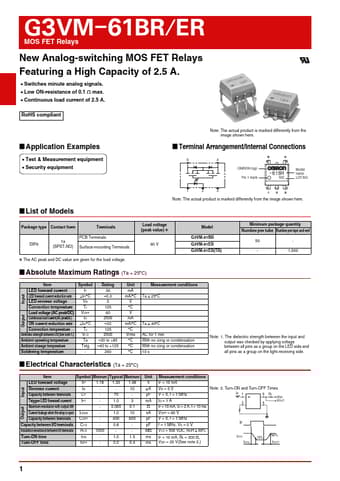

Preview of G3VM-61BR PDF
G3VM-61BR Datasheet Preview Page 2 G3VM-61BR Datasheet Preview Page 3

Datasheet Details

Part number:

G3VM-61BR

Manufacturer:

OMRON

File Size:

889.61 KB

Description:

Mos fet relays.
