NLAS2750 - Low Voltage Dual SPDT Analog Switch

Datasheet Summary

Features

  • Capable to Switch Negative Swing Audio Signals Without Requiring a DC Blocking Capacitor.
  • Low On.
  • resistance (RON).
  • Low Voltage Digital Control Logic: (VINH = 1.4 V @ VCC = 2.7 V to 4.3 V).
  • Low Power Consumption (ICC ≤ 250 nA).
  • Space Saving 1.4 mm x 1.8 mm Package UQFN Package.
  • This is a Pb.
  • Free Device Typical.

📥 Download Datasheet

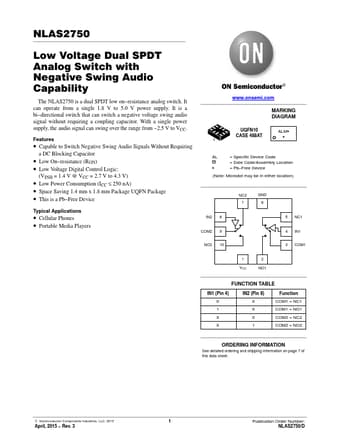

Datasheet preview – NLAS2750

Datasheet Details

Part number NLAS2750
Manufacturer ON Semiconducto
File Size 105.31 KB
Description Low Voltage Dual SPDT Analog Switch
Datasheet download datasheet NLAS2750 Datasheet
Additional preview pages of the NLAS2750 datasheet.
