14106BG, 14106BCP, Hex Schmitt Trigger

MC14106B Hex Schmitt Trigger The MC14106B hex Schmitt Trigger is constructed with MOS P *channel and N *channel enhancement mode device.

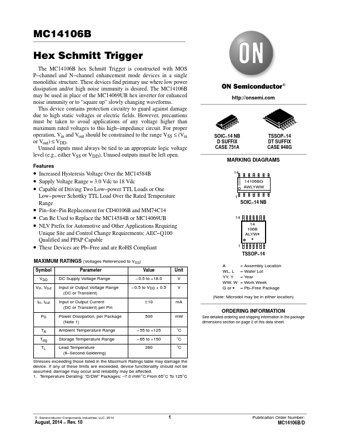

datasheet Preview Page 1 from Datasheet4u.com

14106BCP_ONSemiconductor.pdf

14106BG Datasheet Preview — This datasheet PDF includes multiple part numbers: 14106BG, 14106BCP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

14106BG, 14106BCP

Manufacturer:

ON Semiconductor ↗

File Size:

182.19 KB

Description:

Hex Schmitt Trigger

Note:

This datasheet PDF includes multiple part numbers: 14106BG, 14106BCP.
Please refer to the document for exact specifications by model.

Features

* Increased Hysteresis Voltage Over the MC14584B
* Supply Voltage Range = 3.0 Vdc to 18 Vdc
* Capable of Driving Two Low
* power TTL Loads or One Low
* power Schottky TTL Load Over the Rated Temperature Range
* Pin
* for
* Pin Replacement for C

Applications

* of any voltage higher than maximum rated voltages to this high
* impedance circuit. For proper operation, Vin and Vout should be constrained to the range VSS ≤ (Vin or Vout) ≤ VDD. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either VSS or VDD). Unused outputs
