1N4737A Datasheet - ON Semiconductor

1N4737A Zener Diodes

Zener Diodes 1N4728A - 1N4758A DATA SHEET www.onsemi.com ABSOLUTE MAXIMUM RATINGS (Note 1) Ta = 25°C unless otherwise noted Symbol Parameter Value Unit PD Power Dissipation @ TL ≤ 50°C, Lead Length = 3/8″ 1.0 W Derate above 50°C 6.67 mW/°C TJ, TSTG Operating and Storage Temperature Range 65 to +200 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage.

1N4737A Datasheet (106.60 KB)

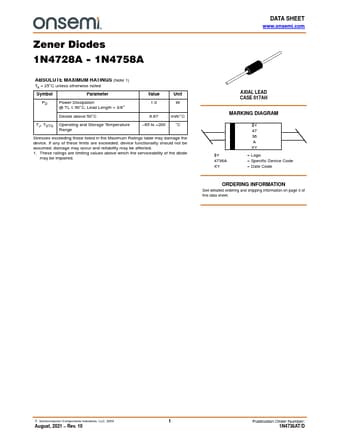

Preview of 1N4737A PDF
1N4737A Datasheet Preview Page 2 1N4737A Datasheet Preview Page 3

Datasheet Details

Part number:

1N4737A

Manufacturer:

ON Semiconductor ↗

File Size:

106.60 KB

Description:

Zener diodes.
