1N4753A, 1N4728A Datasheet - ON Semiconductor

1N4753A Zener Diodes

Zener Diodes 1N4728A - 1N4758A DATA SHEET www.onsemi.com ABSOLUTE MAXIMUM RATINGS (Note 1) Ta = 25°C unless otherwise noted Symbol Parameter Value Unit PD Power Dissipation @ TL ≤ 50°C, Lead Length = 3/8″ 1.0 W Derate above 50°C 6.67 mW/°C TJ, TSTG Operating and Storage Temperature Range 65 to +200 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage.

1N4728A-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 1N4753A, 1N4728A. Please refer to the document for exact specifications by model.

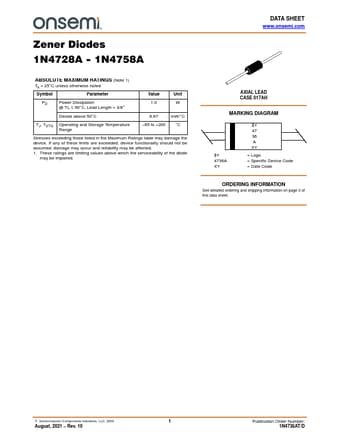

1N4753A Datasheet Preview Page 2 1N4753A Datasheet Preview Page 3

Datasheet Details

Part number:

1N4753A, 1N4728A

Manufacturer:

ON Semiconductor ↗

File Size:

106.60 KB

Description:

Zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N4753A, 1N4728A.
Please refer to the document for exact specifications by model.
