* Zener Voltage Range - 3.3 V to 200 V
* ESD Rating of Class 3 (>16 KV) per Human Body Model
* Surge Rating of 98 W @ 1 ms
* Maximum Limits Guaranteed on up to Six Electrical Parameters
* Package No Larger than the Conventional 1 W Package
* Pb- Free Packages are Available Me
1N5924B
255.72 KB
Zener voltage regulators.

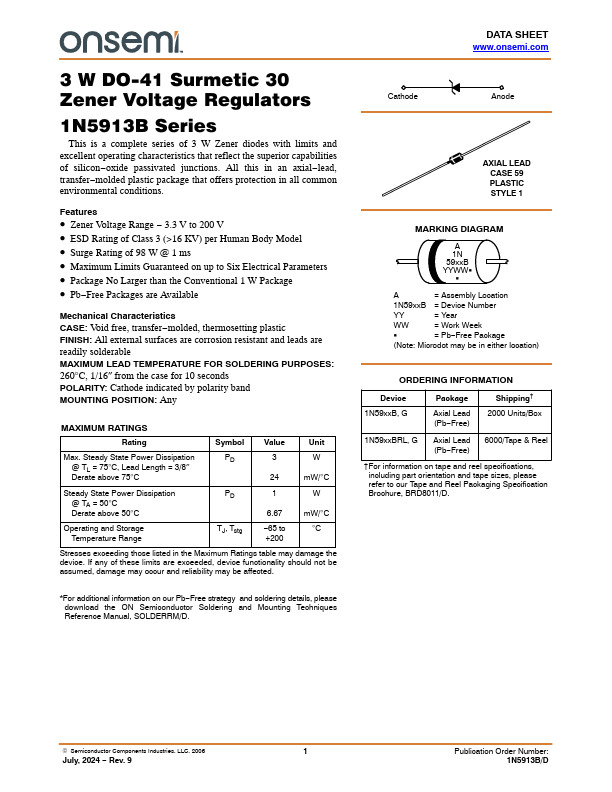

1N5913B Series
3 W DO- 41 Surmetic 30 Zener Voltage Regulators
This is a complete series of 3 W Zener diodes with limits and excellent operating char.
