1N5941B, 1N5913B - Zener Voltage Regulators

Name: 1N5941B
SKU: 1N5941B-1117639

ON Semiconductor

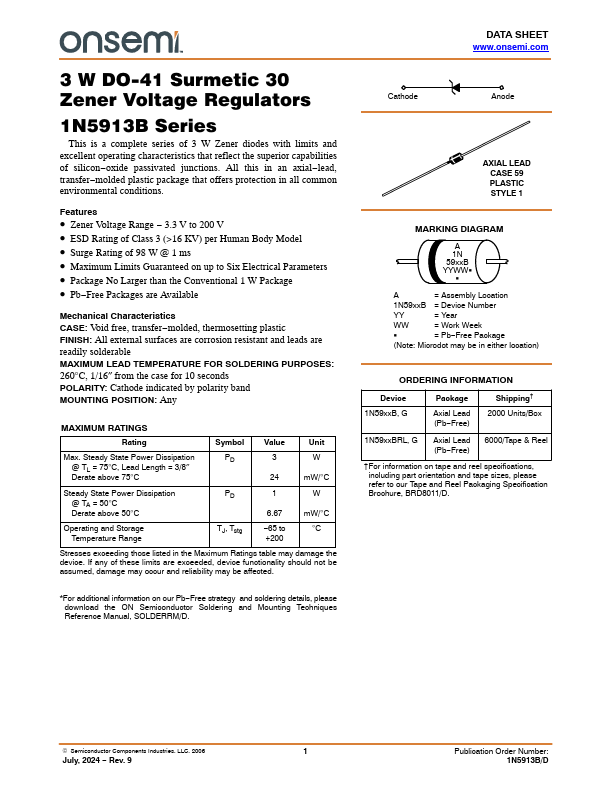

The 1N5941B by ON Semiconductor is a Zener Voltage Regulators. Below is the official datasheet preview.

Datasheet Details

Part number	1N5941B, 1N5913B
Manufacturer	ON Semiconductor
File Size	184.32 KB
Description	Zener Voltage Regulators
Datasheet	1N5913B_ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5941B, 1N5913B. Please refer to the document for exact specifications by model.

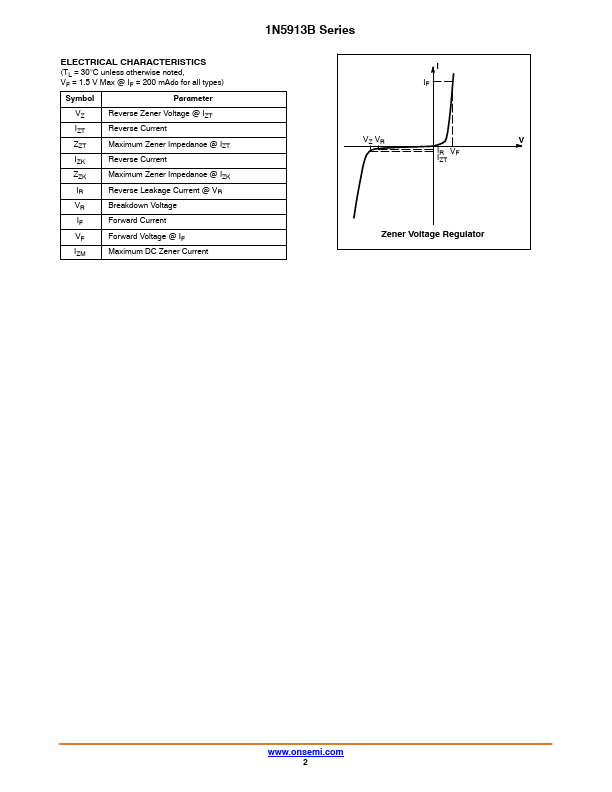

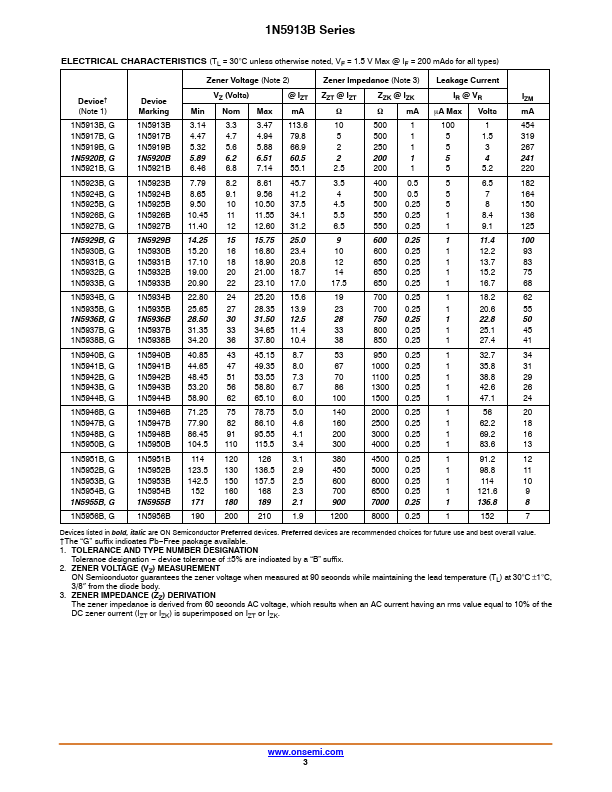

Additional preview pages of the 1N5941B datasheet.

Zener Voltage Range.
3.3 V to 200 V.
ESD Rating of Class 3 (>16 KV) per Human Body Model.
Surge Rating of 98 W @ 1 ms.
Maximum Limits Guaranteed on up to Six Electrical Parameters.
Package No Larger than the Conventional 1 W Package.
Pb.
Free Packages are Available Mechanical Characteristics CASE: Void free, transfer.
molded, thermosetting plastic FINISH: All external surfaces are corrosion resistant and leads are read.
