1SMA5932BT3G, 1SMA5913BT3G - 1.5 Watt Plastic Surface Mount Zener Voltage Regulators

ON Semiconductor

📥 Download Datasheet

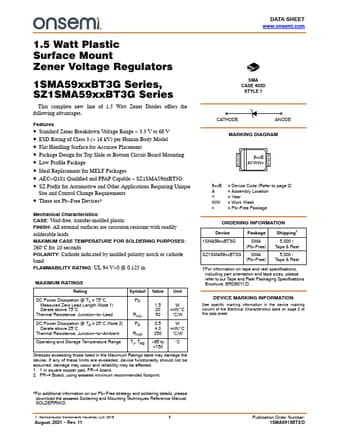

1SMA5932BT3G Datasheet Preview — This datasheet PDF includes multiple part numbers: 1SMA5932BT3G, 1SMA5913BT3G. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	1SMA5932BT3G, 1SMA5913BT3G
Manufacturer	ON Semiconductor ↗
File Size	196.97 KB
Description	1.5 Watt Plastic Surface Mount Zener Voltage Regulators
Datasheet	1SMA5913BT3G-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: 1SMA5932BT3G, 1SMA5913BT3G. Please refer to the document for exact specifications by model.

1SMA5932BT3G Product details

Features

Standard Zener Breakdown Voltage Range.
3.3 V to 68 V.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
Flat Handling Surface for Accurate Placement.
Package Design for Top Slide or Bottom Circuit Board Mounting.
Low Profile Package.
Ideal Replacement for MELF Packages.
AEC.
Q101 Qualified and PPAP Capable.
SZ1SMA59xxBT3G.
SZ Prefix for Automotive and Other.
