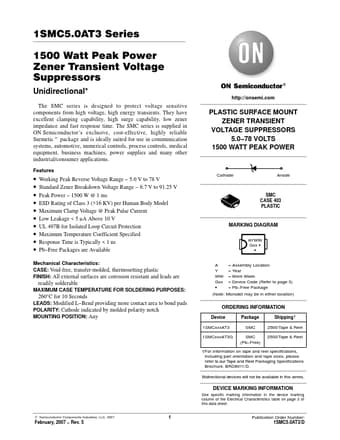

1SMC33AT3
Features
PLASTIC SURFACE MOUNT ZENER TRANSIENT VOLTAGE SUPPRESSORS 5.0- 78 VOLTS 1500 WATT PEAK POWER
- -
- -
- -
- -
- -
Working Peak Reverse Voltage Range
- 5.0 V to 78 V Standard Zener Breakdown Voltage Range
- 6.7 V to 91.25 V Peak Power
- 1500 W @ 1 ms ESD Rating of Class 3 (>16 KV) per Human Body Model Maximum Clamp Voltage @ Peak Pulse Current Low Leakage < 5 m A Above 10 V UL 497B for Isolated Loop Circuit Protection Maximum Temperature Coefficient Specified Response Time is Typically < 1 ns Pb- Free Packages are Available
Cathode
Anode
SMC CASE 403 PLASTIC
MARKING DIAGRAM
AYWW Gxx G G A Y WW Gxx G = Assembly Location = Year = Work Week = Device Code (Refer to page 3) = Pb- Free Package
Mechanical Characteristics: CASE: Void-free, transfer-molded, thermosetting plastic FINISH: All external surfaces are corrosion resistant and leads are readily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260°C for 10 Seconds LEADS: Modified L- Bend providing more contact...
