2N6349A Datasheet | onsemi

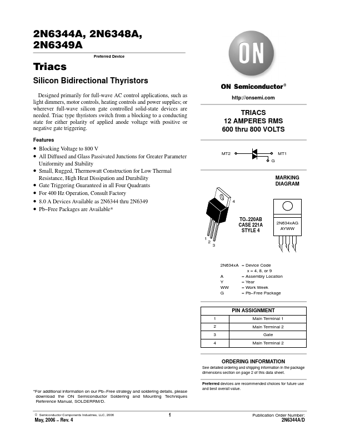

Features http://onsemi. TRIACS 12 AMPERES RMS 600 thru 800 VOLTS - Blocking Voltage to 800 V - All Diffused and Glass Passivated Junctions for Greater Parameter - - - - - Uniformity and Stability Small, Rugged, Thermowatt Construction for Low Thermal Resistance, High Heat Dissipation and Durability Gate Triggering Guaranteed in all Four Quadrants For 400 Hz Operation, Consult Factory 8.0 A Devices Available as 2N6344 thru 2N6349 Pb- Free Packages are Available- MT2 G MT1 MARKING DIAGRAM TO- 220AB CASE 221A STYLE 4 1 2 3 2N634x AG AYWW 2N634x A = Device Code x = 4, 8, or 9 A = Assembly Location Y = Year WW = Work Week G = Pb- Free Package PIN ASSIGNMENT 1 2 3 4 Main Terminal 1 Main Terminal 2 Gate Main Terminal 2 ORDERING INFORMATION See detailed ordering and shipping information in the package dimensions section on page 2 of this data sheet. Preferred devices are remended choices for future use and best overall value. - For additional information on our Pb- Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor ponents Industries, LLC, 2006 May, 2006 - Rev. 4 Publication Order Number: 2N6344A/D 2N6344A, 2N6348A, 2N6349A MAXIMUM RATINGS Characteristics - Peak Repetitive Off- State Voltage (Note 1) (Gate Open, TJ = - 40 to +110°C, Sine Wave 50 to 60 Hz, Gate Open) 2N6344A, 2N6348A 2N6349A - On- State RMS Current (Full Cycle Sine Wave 50 to 60 Hz) (TC = +80°C) (TC = +95°C) IT(RMS) 12 6.0 ITSM I2t PGM PG(AV) IGM VGM TJ Tstg 100 59 20 0.5 2.0 "10 - 40 to +125 - 40 to +150 A A2s W W A V °C °C Symbol VDRM, VRRM 600 800 A Value Unit V - Peak Non- repetitive Surge Current (One Full Cycle, 60 Hz, TC = +80°C) Preceded and followed by rated current Circuit Fusing Consideration (t = 8.3 ms) - Peak Gate Power (TC = +80°C, Pulse Width = 2.0 ms) - Average Gate Power (TC = +80°C, t = 8.3 ms) - Peak Gate Current (Pulse Width = 2.0 ms; TC = +80°C) - Peak Gate Voltage (Pulse Width = 2.0...
