55GN01FA RF Transistor

55GN01FA Description

DATA SHEET www.onsemi.com RF Transistor 10 V, 70 mA, fT = 5.5 GHz, NPN Single SSFP 55GN01FA .

55GN01FA Features

* High Cut
* off Frequency: fT = 5.5 GHz Typ
* High Gain: ⎪S21e⎪2 = 11 dB Typ (f = 1 GHz) ⎪S21e⎪2 = 19 dB Typ (f = 400 MHz)
* Ultrasmall Package Permitting Applied Sets to be Small and Slim
* This Device is Pb
* Free and Halide Free Specification ABSOLUT

📥 Download Datasheet

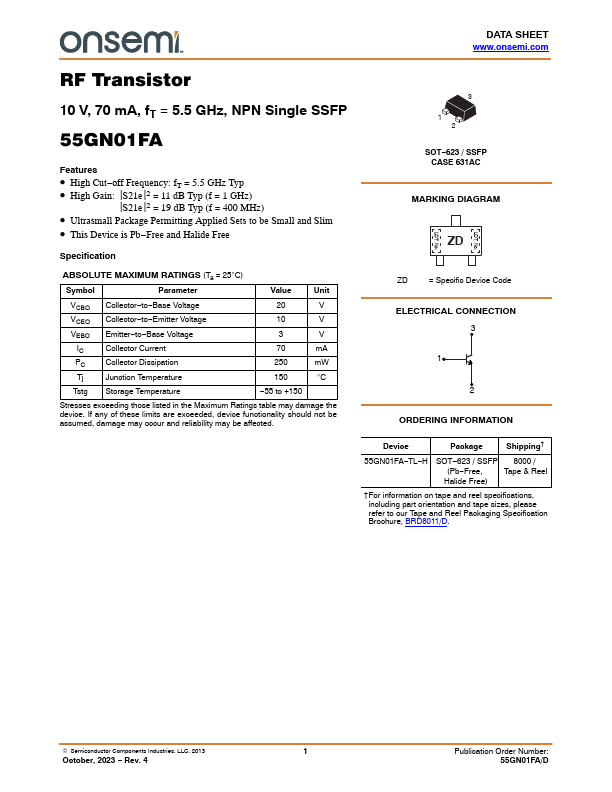

Preview of 55GN01FA PDF

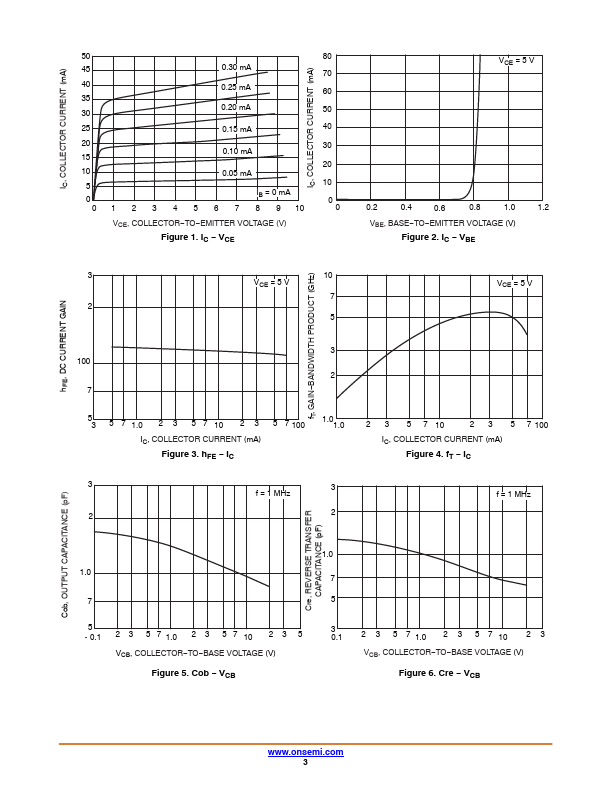

datasheet Preview Page 2 datasheet Preview Page 3
