74LS74 Datasheet - ON Semiconductor

74LS74 LOW-POWER SCHOTTKY

SN74LS74A Dual D-Type Positive Edge-Triggered Flip-Flop The SN74LS74A dual edge-triggered flip-flop utilizes Schottky TTL circuitry to produce high speed D-type flip-flops. Each flip-flop has individual clear and set inputs, and also complementary Q and Q outputs. Information at input D is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level of the clock pulse and is not directly related to the transition time of the positive-going.

74LS74_ONSemiconductor.pdf

Preview of 74LS74 PDF

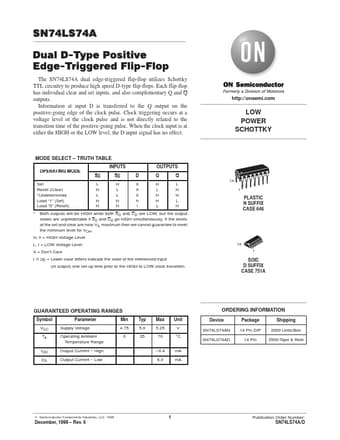

74LS74 Datasheet Preview Page 2 74LS74 Datasheet Preview Page 3

Datasheet Details

Part number:

74LS74

Manufacturer:

ON Semiconductor ↗

File Size:

102.75 KB

Description:

Low-power schottky.
