8M12A, 8M12D, 500mA Positive Voltage Regulator

500 mA Positive Voltage Regulators MC78M00, MC78M00A, NCV78M00 Series .
The MC78M00/MC78M00A Series positive voltage regulators are identical to the popular MC7800 Series devices, except that they are specified for only ha.

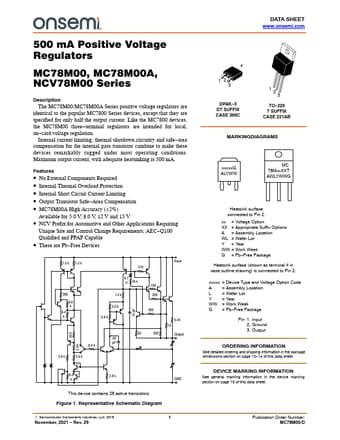

datasheet Preview Page 1 from Datasheet4u.com

8M12D-ONSemiconductor.pdf

8M12A Datasheet Preview — This datasheet PDF includes multiple part numbers: 8M12A, 8M12D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

8M12A, 8M12D

Manufacturer:

ON Semiconductor ↗

File Size:

307.05 KB

Description:

500mA Positive Voltage Regulator

Note:

This datasheet PDF includes multiple part numbers: 8M12A, 8M12D.
Please refer to the document for exact specifications by model.

Features

* No External Components Required
* Internal Thermal Overload Protection
* Internal Short Circuit Current Limiting
* Output Transistor Safe
* Area Compensation
* MC78M00A High Accuracy (±2%) Available for 5.0 V, 8.0 V, 12 V and 15 V
* NCV Prefix

Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q100 Qualified and PPAP Capable
* These are Pb
* Free Devices 1.0 k 1.0 k Input 210 520 2.6 k 10 pF 300 3.6 k 6.4 k 6.7 V 16 k 100 1.0 k 200 3.0 k 5.6 k 40 pF 6.0 k 300 50 200 0.24 13 Output 2.0 k 3.9 k
