ADP3110A 12V MOSFET Driver

SO *8 DFN8 Symbol 1 1 BST 2 2 IN 3 3 OD 4 4 VCC 5 5 DRVL 6 6 PGND 7 7 SWN 8 8 DRVH Description Upper MOSFET Floating Bootstrap Supply. A capacitor connected between BST and SW pins holds this bootstrap voltage for the high *side MOSFET as it is switched. The r.

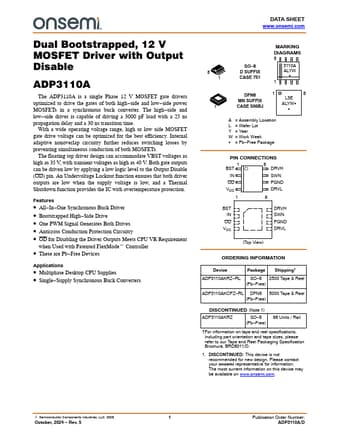

Dual Bootstrapped, 12 V MOSFET Driver with Output Disable ADP3110A The ADP3110A is a single Phase 12 V MOSFET gate drivers optimized to drive the gates of both high side and low side power MOSFETs in a synchronous buck converter. The high side and low side driver is capable of driving a 3000 pF load with a 25 ns propagation delay and a 30 ns transition time. With a wide operating voltage range, high or low side MOSFET gate drive voltage can be optimized for the be.

ADP3110A Features

* All

* In

* One Synchronous Buck Driver

* Bootstrapped High

* Side Drive

* One PWM Signal Generates Both Drives

* Anticross Conduction Protection Circuitry

* OD for Disabling the Driver Outputs Meets CPU VR Requirement when Used with Patente

ADP3110A Datasheet (225.95 KB)
