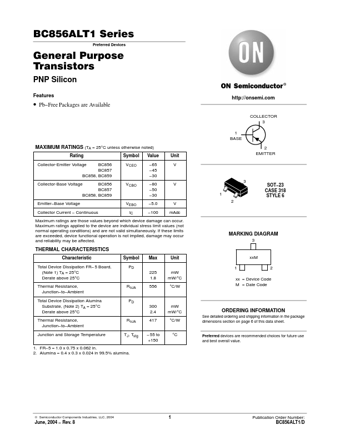

BC856ALT1 Series
Preferred Devices
General Purpose Transistors
PNP Silicon
Features
• Pb−Free Packages are Available
MAXIMUM RATINGS (TA = 25°C unless otherwise noted)
Rating
Symbol Value
Unit
Collector-Emitter Voltage
BC856
BC857
BC858, BC859
VCEO
−65 −45 −30
V
Collector-Base Voltage
BC856
BC857
BC858, BC859
VCBO
−80 −50 −30
V
Emitter−Base Voltage
VEBO
−5.0
V
Collector Current − Continuous
IC −100 mAdc
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
