BTA12-600C4G - Triacs

Product Overview

ON Semiconductor

📥 Download Datasheet

BTA12-600C4G Triacs by ON Semiconductor - Datasheet Preview — Datasheet preview – BTA12-600C4G

Datasheet Details

Part number	BTA12-600C4G
Manufacturer	ON Semiconductor
File Size	101.26 KB
Description	Triacs
Datasheet	BTA12-600C4G Datasheet

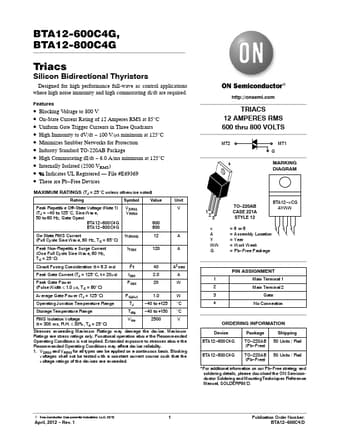

Additional preview pages of the BTA12-600C4G datasheet.

Product details

Features

Blocking Voltage to 800 V.
On-State Current Rating of 12 Amperes RMS at 85°C.
Uniform Gate Trigger Currents in Three Quadrants.
High Immunity to dV/dt.
100 V/ms minimum at 125°C.
Minimizes Snubber Networks for Protection.
Industry Standard TO-220AB Package.
High Commutating dI/dt.
6.0 A/ms minimum at 125°C.
Internally Isolated (2500 VRMS).
Indicates UL Registered.
File #E69369.
T.
