BZX79C47 Datasheet - ON Semiconductor

BZX79C47 Zener Diodes

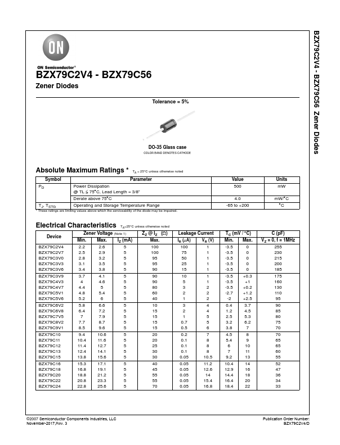

BZX79C2V4 - BZX79C56 Zener Diodes BZX79C2V4 - BZX79C56 Zener Diodes Tolerance = 5% DO-35 Glass case COLOR BAND DENOTES CATHODE Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter PD Power Dissipation @ TL ≤ 75°C, Lead Length = 3/8” Derate above 75°C TJ, TSTG Operating and Storage Temperature Range These ratings are limiting values above which the serviceability of the diode may be impaired. Value 500 4.0 -65 to +200 Units mW mW/°C °C Electrical Cha.

BZX79C47 Datasheet (189.34 KB)
