BZX79C56, BZX79C2V4 Datasheet - ON Semiconductor

BZX79C56 Zener Diodes

BZX79C2V4 - BZX79C56 Zener Diodes BZX79C2V4 - BZX79C56 Zener Diodes Tolerance = 5% DO-35 Glass case COLOR BAND DENOTES CATHODE Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter PD Power Dissipation @ TL ≤ 75°C, Lead Length = 3/8” Derate above 75°C TJ, TSTG Operating and Storage Temperature Range These ratings are limiting values above which the serviceability of the diode may be impaired. Value 500 4.0 -65 to +200 Units mW mW/°C °C Electrical Cha.

BZX79C2V4-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: BZX79C56, BZX79C2V4. Please refer to the document for exact specifications by model.

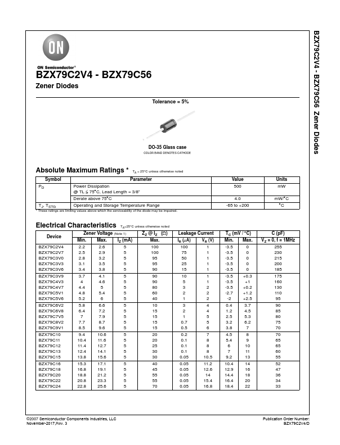

BZX79C56 Datasheet Preview Page 2 BZX79C56 Datasheet Preview Page 3

Datasheet Details

Part number:

BZX79C56, BZX79C2V4

Manufacturer:

ON Semiconductor ↗

File Size:

189.34 KB

Description:

Zener diodes.

Note:

This datasheet PDF includes multiple part numbers: BZX79C56, BZX79C2V4.
Please refer to the document for exact specifications by model.
