BZX84B6V8LT1G Zener Voltage Regulators

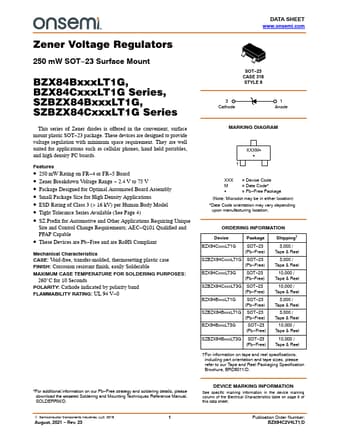

DATA SHEET www.onsemi.com Zener Voltage Regulators 250 mW SOT 23 Surface Mount BZX84BxxxLT1G, BZX84CxxxLT1G Series, SZBZX84BxxxLT1G, SZBZX84CxxxLT1G Series SOT 23 CASE 318 STYLE 8 3 Cathode 1 Anode This series of Zener diodes is offered in the convenient, surface mount plastic SOT 23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables, and.

BZX84B6V8LT1G Features

* 250 mW Rating on FR

* 4 or FR

* 5 Board

* Zener Breakdown Voltage Range

* 2.4 V to 75 V

* Package Designed for Optimal Automated Board Assembly

* Small Package Size for High Density Applications

* ESD Rating of Class 3 (> 16 kV) per Human
