BZX84C22LT1G Datasheet Zener Voltage Regulators

Manufacturer: onsemi

Download the BZX84C22LT1G datasheet PDF. This datasheet also includes the BZX84C7V5LT1G variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZX84C7V5LT1G-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Overview

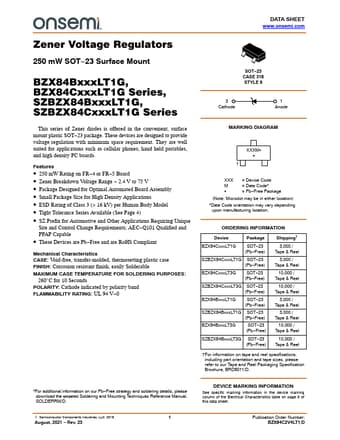

BZX84BxxxLT1G, BZX84CxxxLT1G Series, SZBZX84BxxxLT1G, SZBZX84CxxxLT1G Series Zener Voltage Regulators 250 mW SOT−23 Surface Mount This series of Zener diodes is offered in the convenient, surface mount plastic SOT−23 package.

These devices are designed to provide voltage regulation with minimum space requirement.

They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.

Key Features

  • 250 mW Rating on FR.
  • 4 or FR.
  • 5 Board.
  • Zener Breakdown Voltage Range.
  • 2.4 V to 75 V.
  • Package Designed for Optimal Automated Board Assembly.
  • Small Package Size for High Density.
