* 250 mW Rating on FR
* 4 or FR
* 5 Board
* Zener Breakdown Voltage Range
* 2.4 V to 75 V
* Package Designed for Optimal Automated Board Assembly
* Small Package Size for High Density Applications
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Pe
BZX84C24ET1G Datasheet (144.33 KB)
BZX84C24ET1G
144.33 KB
Zener voltage regulators.

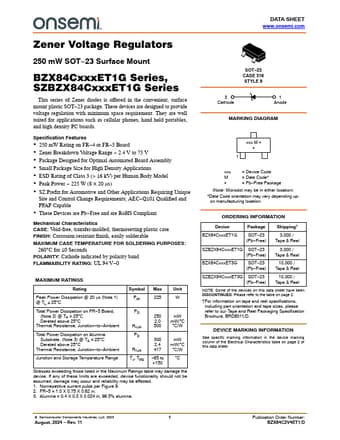

DATA SHEET www.onsemi.com
Zener Voltage Regulators
250 mW SOT
*23 Surface Mount
BZX84CxxxET1G Series, SZBZX84CxxxET1G Series
This series of Z.
