CAT93C46 Datasheet PDF - ON Semiconductor 1Kb Microwire Serial EEPROM Specs

CAT93C46 - 1Kb Microwire Serial EEPROM

Datasheet Summary

Description

configured as either 64 registers of 16 bits (ORG pin at VCC) or 128 registers of 8 bits (ORG pin at GND).

Each register can be written (or read) serially by using the DI (or DO) pin.

Features

a self.
timed internal write with auto.
clear. On.
chip Power.
On Reset circuit protects the internal logic against powering up in the wrong state. Features.
High Speed Operation: 2 MHz.
1.8 V to 5.5 V Supply Voltage Range.
Selectable x8 or x16 Memory Organization.
Self.
Timed Write Cycle with Auto.
Clear.
Software Write Protection.
Power.
up Inadvertant Write Protection.
Low Power CMO.

Datasheet Details

Part number	CAT93C46
Manufacturer	ON Semiconductor
File Size	147.54 KB
Description	1Kb Microwire Serial EEPROM
Datasheet	CAT93C46 Datasheet
Additional preview pages of the CAT93C46 datasheet.

📁 Similar Datasheet

CAT93C46 - 1K/2K/2K/4K/16K-Bit Microwire Serial E2PROM (Catalyst Semiconductor)

CAT93C4611 - Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT93C4612 - Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT93C4613 - Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT93C4614 - Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT93C4621 - Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT93C4622 - Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT93C4623 - Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT93C4624 - Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

CAT93C4631 - Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)

Full PDF Text Transcription

Click to expand full text

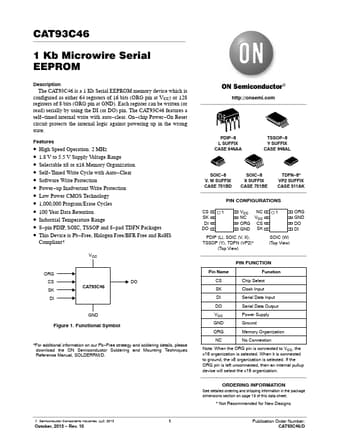

CAT93C46 1 Kb Microwire Serial EEPROM Description The CAT93C46 is a 1 Kb Serial EEPROM memory device which is configured as either 64 registers of 16 bits (ORG pin at VCC) or 128 registers of 8 bits (ORG pin at GND). Each register can be written (or read) serially by using the DI (or DO) pin. The CAT93C46 features a self−timed internal write with auto−clear. On−chip Power−On Reset circuit protects the internal logic against powering up in the wrong state. Features • High Speed Operation: 2 MHz • 1.8 V to 5.
