CAV25080 Datasheet, Eeprom, ON Semiconductor

CAV25080 Features

  • Eeprom
  • Automotive AEC
  • Q100 Grade 1 (
  • 40°C to +125°C) Qualified
  • 10 MHz SPI Compatible
  • 2.5 V to 5.5 V Supply Voltage Range
  • SPI Modes (0,0)

PDF File Details

Part number:

CAV25080

Manufacturer:

ON Semiconductor ↗

File Size:

256.25kb

Download:

📄 Datasheet

Description:

Spi serial cmos eeprom. The CAV25080/25160 are a EEPROM Serial 8/16

  • Kb SPI Automotive Grade 1 devices internally organized as 1024x8/2048x8 bits. The

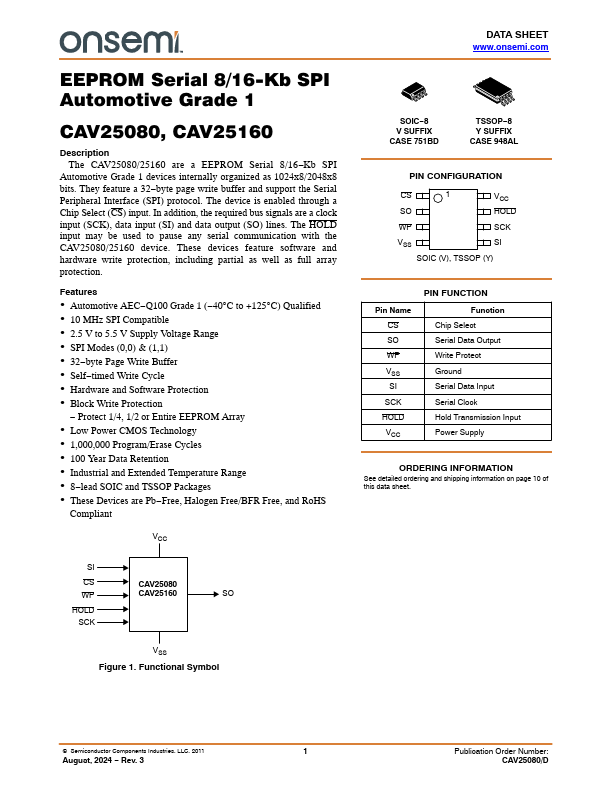

  • Datasheet Preview: CAV25080 📥 Download PDF (256.25kb)

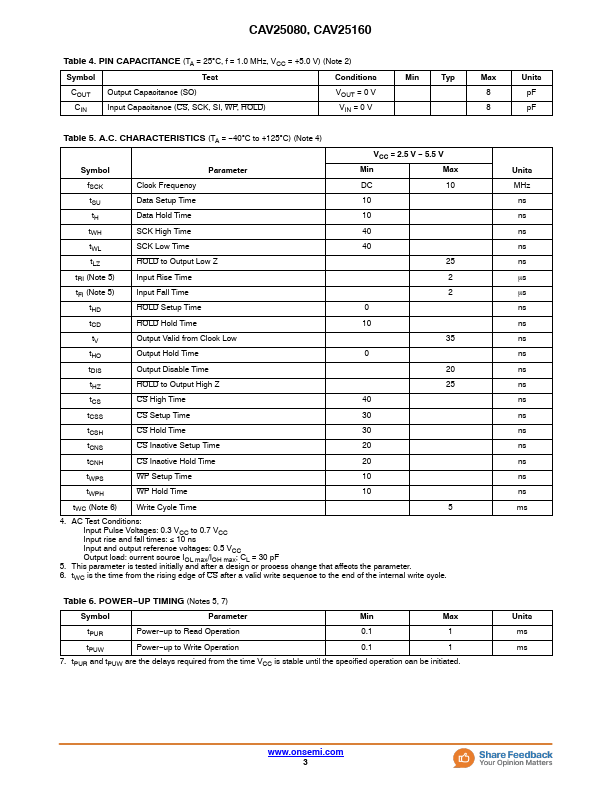

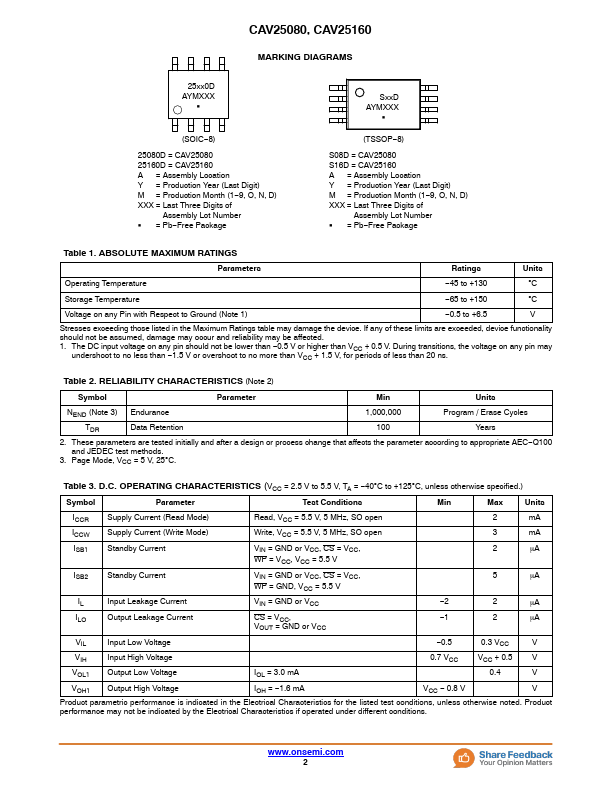

    Page 2 of CAV25080 Page 3 of CAV25080
