CM1623

EMI Filter with ESD Protection

CM1623 Features

* 4-channel EMI filtering with integrated ESD protection Pi-style EMI filters in a capacitor-resistor-capacitor (C-R-C) network ±15kV ESD protection on each channel (IEC 61000-4-2 Level 4, contact discharge) 8-lead UDFN package with

CM1623 General Description

PIN 1 2 3 4 GND PAD NAME RST CLK DATA VCC GND DESCRIPTION Filter + ESD Channel 1 Filter + ESD Channel 2 Filter + ESD Channel 3 V External Device Ground PIN 8 7 6 5 NAME RST CLK DATA VCC DESCRIPTION Filter + ESD Channel 1 Filter + ESD Channel 2 Filter + ESD Channel 3 V External Ordering Information.

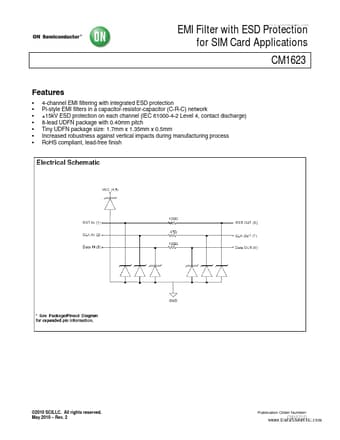

CM1623 Datasheet (336.07 KB)

Preview of CM1623 PDF

Datasheet Details

Part number:

CM1623

Manufacturer:

ON Semiconductor ↗

File Size:

336.07 KB

Description:

Emi filter with esd protection.
