CS1088

Vacuum Fluorescent Display Tube Driver

CS1088 Features

* Power On Reset Display Dimming Possible Three, 50 mA Grid Drivers Anodes:

* 6 @ 20 mA

* 25 @ 2 mA Chip Select Clock SPI Functions 5V GND Anodes 1:31 0.1 µF VCC µP PORT PORT PORT GND PORT DIN GRID1 CLK GRID2 STB GRID3 GREN GND VBB FILAMENT VFD GRID1GRID2 GRID3 GND http://onsemi.com

CS1088 General Description

Package Lead Number 40L DIP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 Lead Symbol (31 Anode Configuration) GRID1 GRID2 GRID3 AN1 AN2 AN3 AN4 AN5 AN6 AN7 AN8 AN9 AN10 AN11 AN12 AN13 AN14 AN15 AN16 GND AN17 AN18 AN19 AN20 AN21 AN22 A.

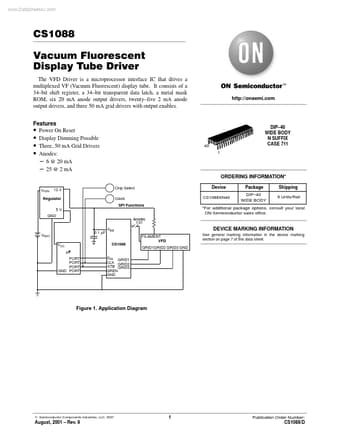

CS1088 Datasheet (97.79 KB)

Preview of CS1088 PDF

Datasheet Details

Part number:

CS1088

Manufacturer:

ON Semiconductor ↗

File Size:

97.79 KB

Description:

Vacuum fluorescent display tube driver.
www.DataSheet4U.com CS1088 Vacuum Fluorescent Display Tube Driver The VFD Driver is a microprocessor interface IC that drives a multiplexed VF (Vacuu.
