D44VH Datasheet - ON Semiconductor

D44VH Complementary Silicon Power Transistors

ON Semiconductort Complementary Silicon Power Transistors These complementary silicon power transistors are designed for high speed switching applications, such as switching regulators and high frequency inverters. The devices are also well suited for drivers for high power switching circuits. Fast Switching tf = 90 ns (Max) Key Parameters Specified @ 100_C Low Collector Emitter Saturation Voltage VCE(sat) = 1.0 V (Max).

D44VH_ONSemiconductor.pdf

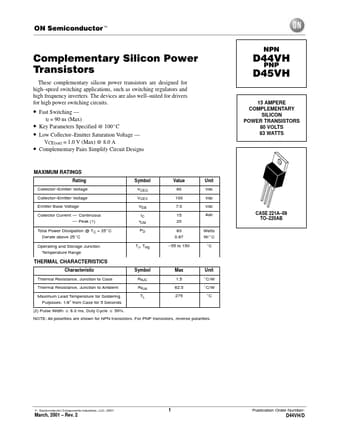

Preview of D44VH PDF
D44VH Datasheet Preview Page 2 D44VH Datasheet Preview Page 3

Datasheet Details

Part number:

D44VH

Manufacturer:

ON Semiconductor ↗

File Size:

38.59 KB

Description:

Complementary silicon power transistors.
