DTA124EE Datasheet - ON Semiconductor

DTA124EE - Digital Transistors

MUN2112, MMUN2112L, MUN5112, DTA124EE, DTA124EM3, NSBA124EF3 Digital Transistors (BRT) R1 = 22 kW, R2 = 22 kW PNP Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT eliminates these individual

DTA124EE Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free,

DTA124EE-ONSemiconductor.pdf

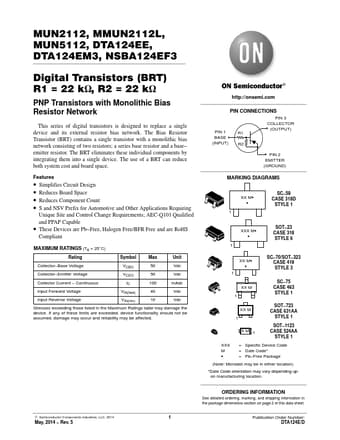

Preview of DTA124EE PDF
DTA124EE Datasheet Preview Page 2 DTA124EE Datasheet Preview Page 3

Datasheet Details

Part number:

DTA124EE

Manufacturer:

ON Semiconductor ↗

File Size:

96.30 KB

Description:

Digital transistors.
