DTC144EM3, DTC144EE Datasheet - ON Semiconductor

DTC144EM3 - Digital Transistors

DATA SHEET www.onsemi.com Digital Transistors (BRT) R1 = 47 kW, R2 = 47 kW NPN Transistors with Monolithic Bias Resistor Network MUN2213, MMUN2213L, MUN5213, DTC144EE, DTC144EM3, NSBC144EF3 This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT

DTC144EM3 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free, Halogen Free/BFR Fr

DTC144EE-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: DTC144EM3, DTC144EE. Please refer to the document for exact specifications by model.

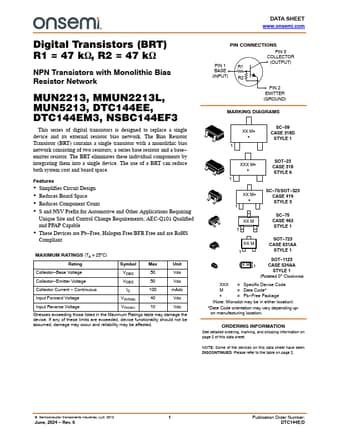

DTC144EM3 Datasheet Preview Page 2 DTC144EM3 Datasheet Preview Page 3

Datasheet Details

Part number:

DTC144EM3, DTC144EE

Manufacturer:

ON Semiconductor ↗

File Size:

544.63 KB

Description:

Digital transistors.

Note:

This datasheet PDF includes multiple part numbers: DTC144EM3, DTC144EE.
Please refer to the document for exact specifications by model.
