EFC4619R, Power MOSFET

Ordering number : ENA2179A EFC4619R Power MOSFET 24V, 6A, 23mΩ N-Channel Dual EFCP http://onsemi.com .

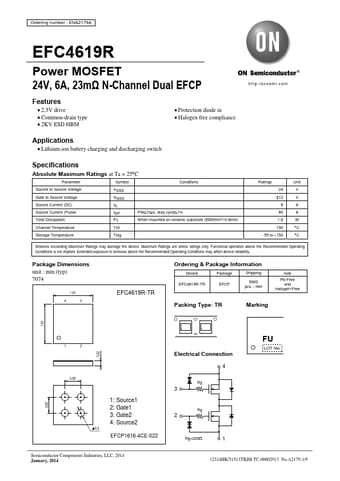

datasheet Preview Page 1 from Datasheet4u.com

EFC4619R-ONSemiconductor.pdf

Preview of EFC4619R PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

EFC4619R

Manufacturer:

ON Semiconductor ↗

File Size:

253.38 KB

Description:

Power MOSFET

Features

* 2.5V drive
* Common-drain type
* 2KV ESD HBM
* Protection diode in

Applications

* Lithium-ion battery charging and discharging switch Specifications Absolute Maximum Ratings at Ta = 25C Parameter Symbol Conditions Source to Source Voltage Gate to Source Voltage Source Current (DC) Source Current (Pulse) Total Dissipation Channel Temperature VSSS VGSS IS ISP PT Tch
