ES1JAF, ES1DAF Datasheet - ON Semiconductor

ES1JAF Surface Mount Ultrafast Rectifier

SMA *FL Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 onsemi and are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subs.

ES1JAF Features

* Fast Switching Speed

* Maximum Trr 35 ns

* Ultra Thin Profile

* Maximum Height of 1.0 mm

* Glass Passivated Junction

* UL Flammability 94V

* 0 Classification

* MSL 1

* Green Mold Compound

* These Devices are Pb

* F

ES1DAF-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: ES1JAF, ES1DAF. Please refer to the document for exact specifications by model.

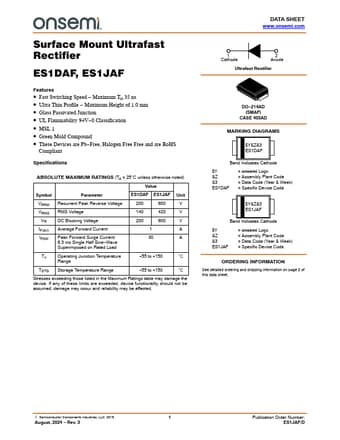

ES1JAF Datasheet Preview Page 2 ES1JAF Datasheet Preview Page 3

Datasheet Details

Part number:

ES1JAF, ES1DAF

Manufacturer:

ON Semiconductor ↗

File Size:

204.92 KB

Description:

Surface mount ultrafast rectifier.

Note:

This datasheet PDF includes multiple part numbers: ES1JAF, ES1DAF.
Please refer to the document for exact specifications by model.
