FDA24N50F - 500V 24A N-Channel MOSFET

Name: FDA24N50F
SKU: FDA24N50F-1588795

ON Semiconductor

📥 Download Datasheet

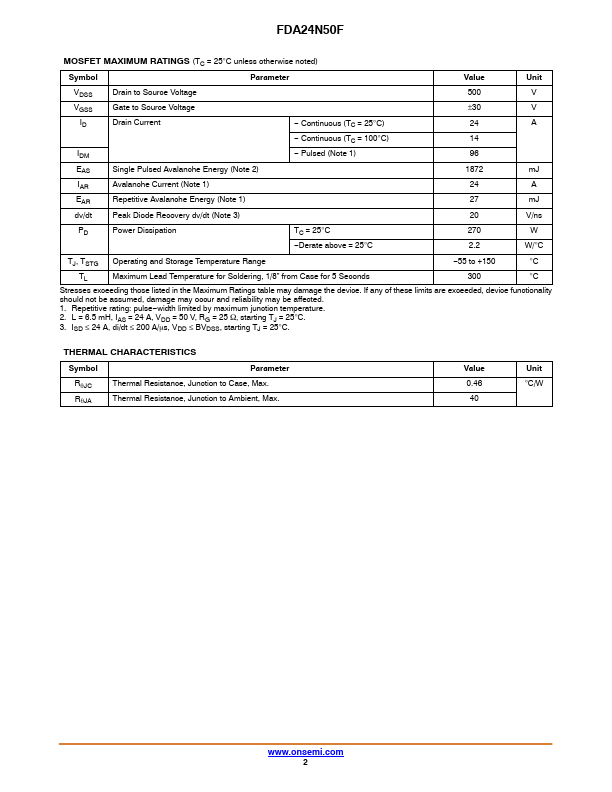

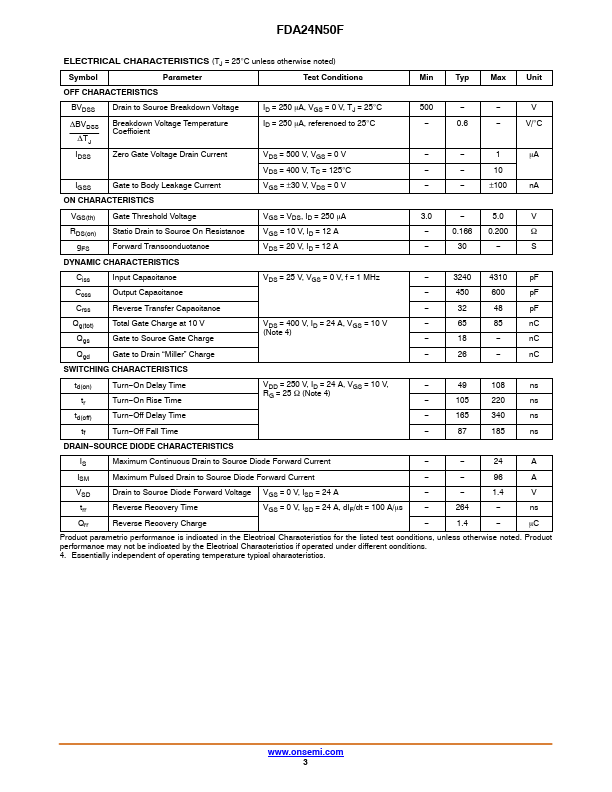

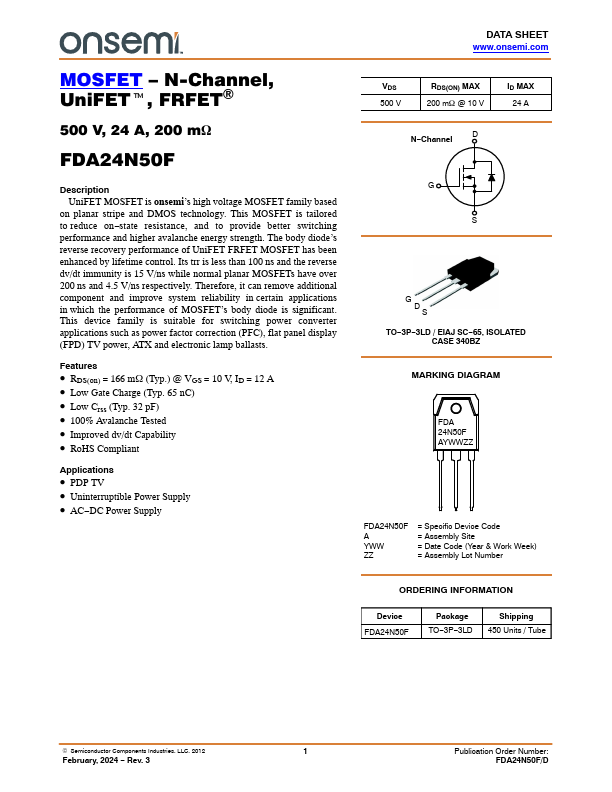

FDA24N50F Datasheet Preview — Preview of FDA24N50F PDF

Datasheet Details

Part number	FDA24N50F
Manufacturer	ON Semiconductor
File Size	287.27 KB
Description	500V 24A N-Channel MOSFET
Datasheet	FDA24N50F-ONSemiconductor.pdf

FDA24N50F Product details

Description

UniFET MOSFET is onsemi’s high voltage MOSFET family based on planar stripe and DMOS technology.This MOSFET is tailored to reduce on state resistance, and to provide better switching performance and higher avalanche energy strength.

Features

RDS(on) = 166 mW (Typ. ) @ VGS = 10 V, ID = 12 A.
Low Gate Charge (Typ. 65 nC).
Low Crss (Typ. 32 pF).
100% Avalanche Tested.
Improved dv/dt Capability.
RoHS Compliant.
