FDBL0200N100 - 100V 300A N-Channel MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

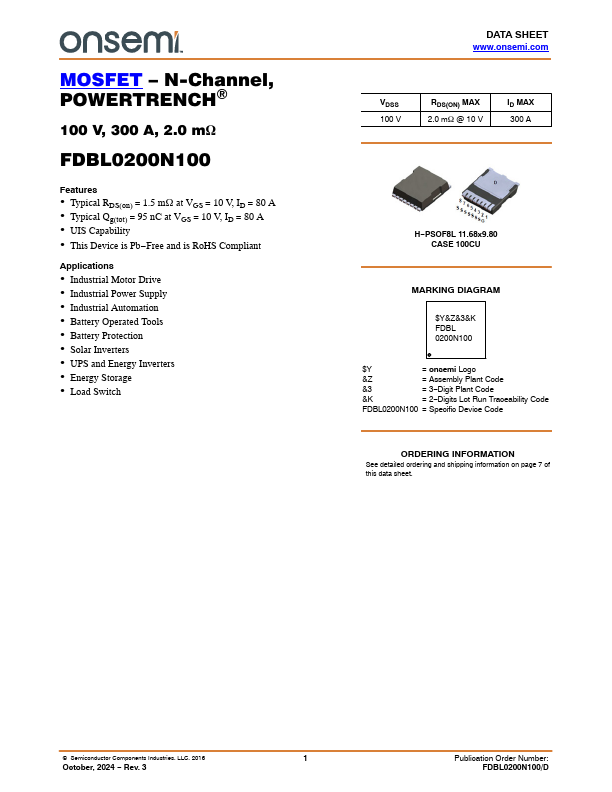

FDBL0200N100 100V 300A N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – FDBL0200N100

Datasheet Details

Part number	FDBL0200N100
Manufacturer	ON Semiconductor
File Size	519.45 KB
Description	100V 300A N-Channel MOSFET
Datasheet	FDBL0200N100 Datasheet

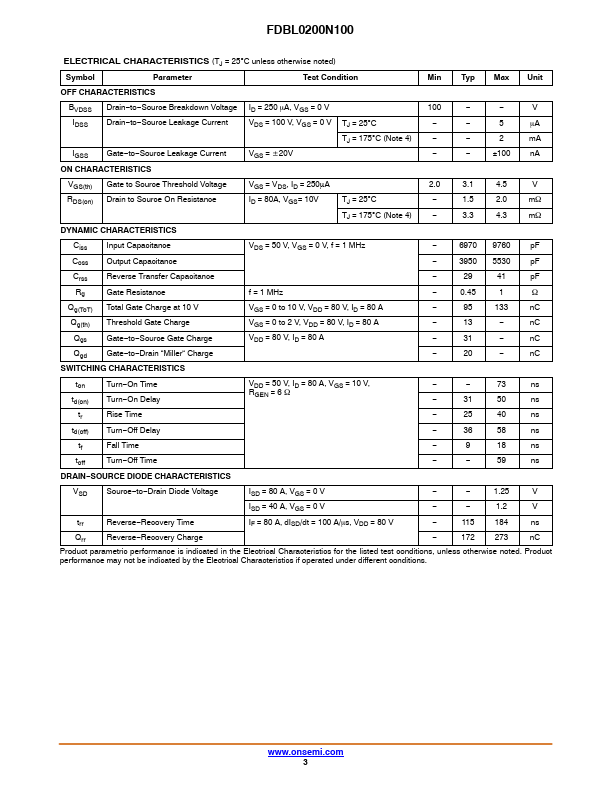

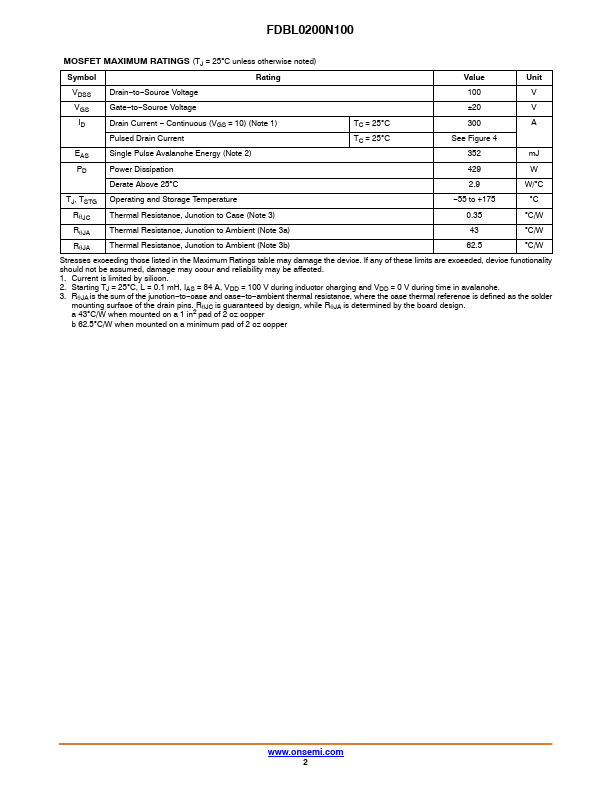

Additional preview pages of the FDBL0200N100 datasheet.

Product details

Features

Typical RDS(on) = 1.5 mW at VGS = 10 V, ID = 80 A.
Typical Qg(tot) = 95 nC at VGS = 10 V, ID = 80 A.
UIS Capability.
This Device is Pb.
Free and is RoHS Compliant.
