FDBL0630N150 Datasheet, Mosfet, ON Semiconductor

FDBL0630N150 Features

  • Mosfet
  • Typ rDS(on) = 5 mW at VGS = 10 V, ID = 80 A
  • Typ Qg(tot) = 70 nC at VGS = 10 V, ID = 80 A
  • UIS Capability
  • This Device is Pb
  • Free and is RoH

PDF File Details

Part number:

FDBL0630N150

Manufacturer:

ON Semiconductor ↗

File Size:

494.52kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

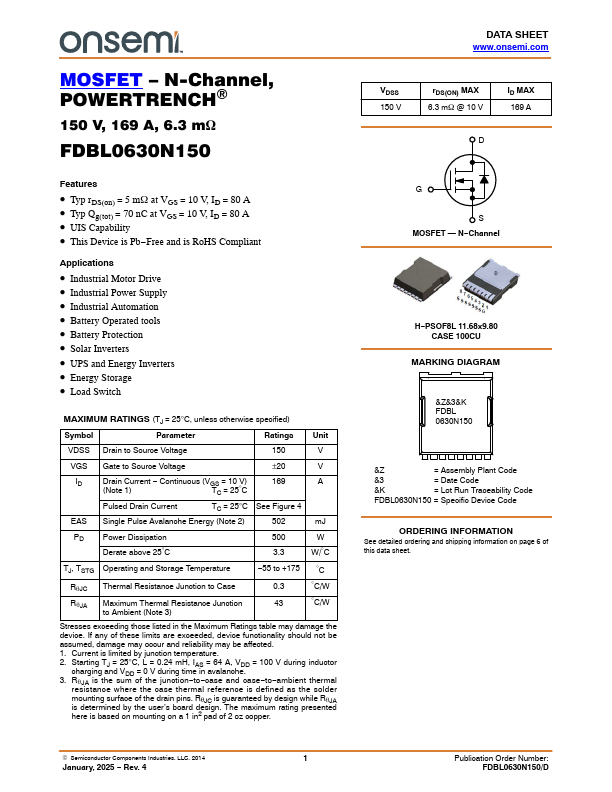

Datasheet Preview: FDBL0630N150 📥 Download PDF (494.52kb)

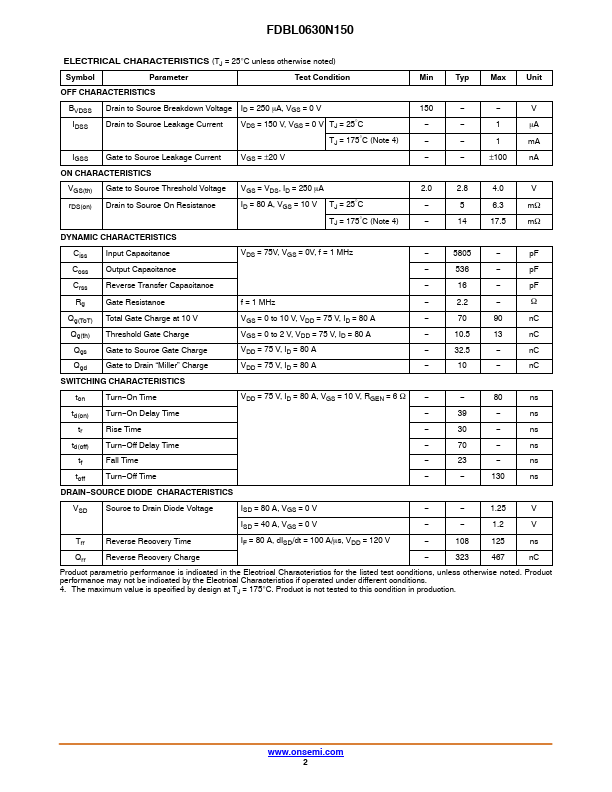

Page 2 of FDBL0630N150 Page 3 of FDBL0630N150

FDBL0630N150 Application

  • Applications
  • Industrial Motor Drive
  • Industrial Power Supply
  • Industrial Automation
  • Battery Operated tools

TAGS

FDBL0630N150
N-Channel
MOSFET
ON Semiconductor
