FDBL86062-F085 - 100V 300A N-Channel MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

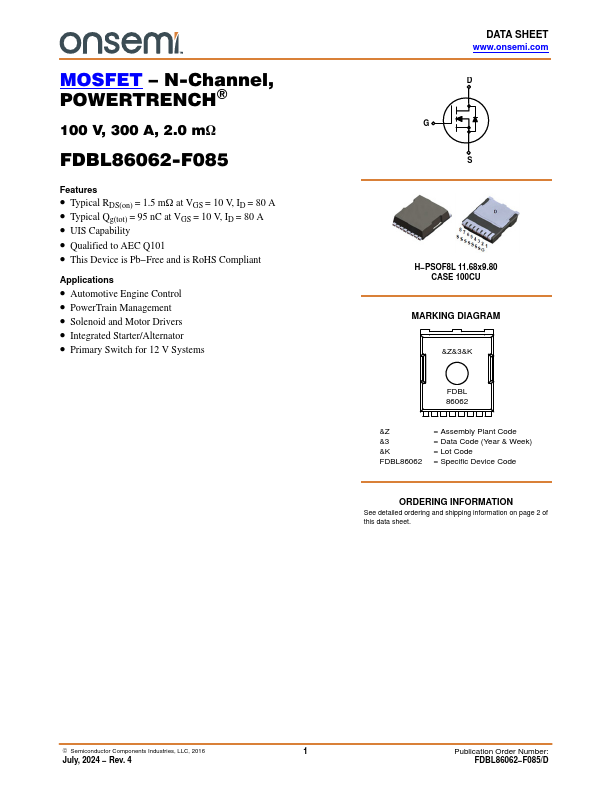

FDBL86062-F085 100V 300A N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – FDBL86062-F085

Datasheet Details

Part number	FDBL86062-F085
Manufacturer	ON Semiconductor
File Size	478.38 KB
Description	100V 300A N-Channel MOSFET
Datasheet	FDBL86062-F085 Datasheet

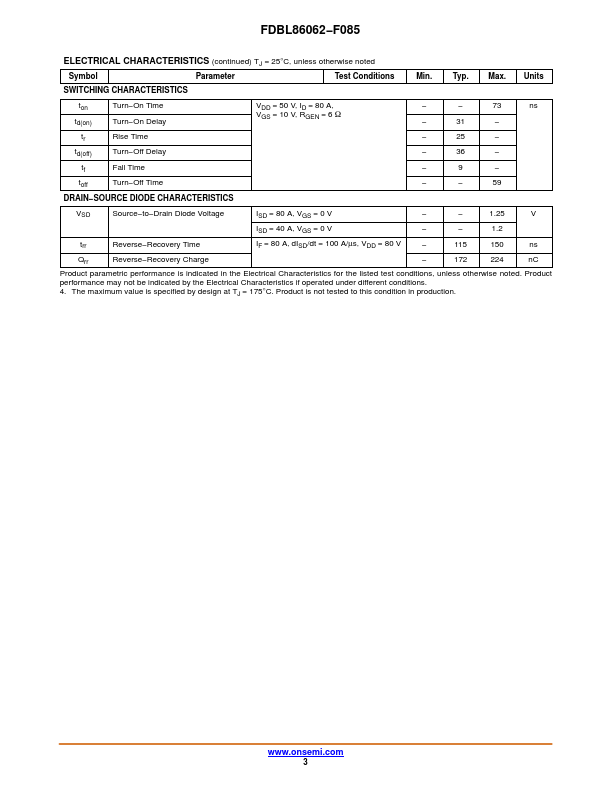

Additional preview pages of the FDBL86062-F085 datasheet.

Product details

Features

Typical RDS(on) = 1.5 mW at VGS = 10 V, ID = 80 A.
Typical Qg(tot) = 95 nC at VGS = 10 V, ID = 80 A.
UIS Capability.
Qualified to AEC Q101.
This Device is Pb.
Free and is RoHS Compliant.
