FDBL86063 - 100V 240A N-Channel MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

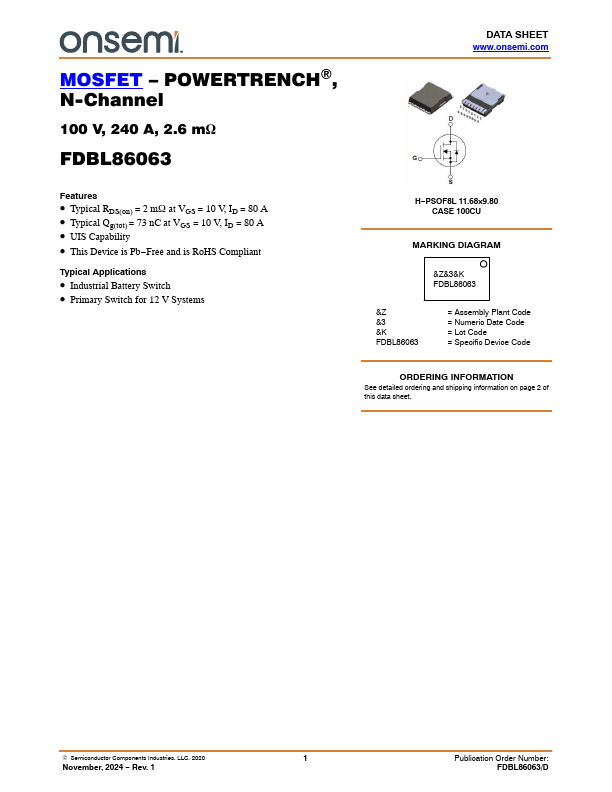

FDBL86063 100V 240A N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – FDBL86063

Datasheet Details

Part number	FDBL86063
Manufacturer	ON Semiconductor
File Size	519.41 KB
Description	100V 240A N-Channel MOSFET
Datasheet	FDBL86063 Datasheet

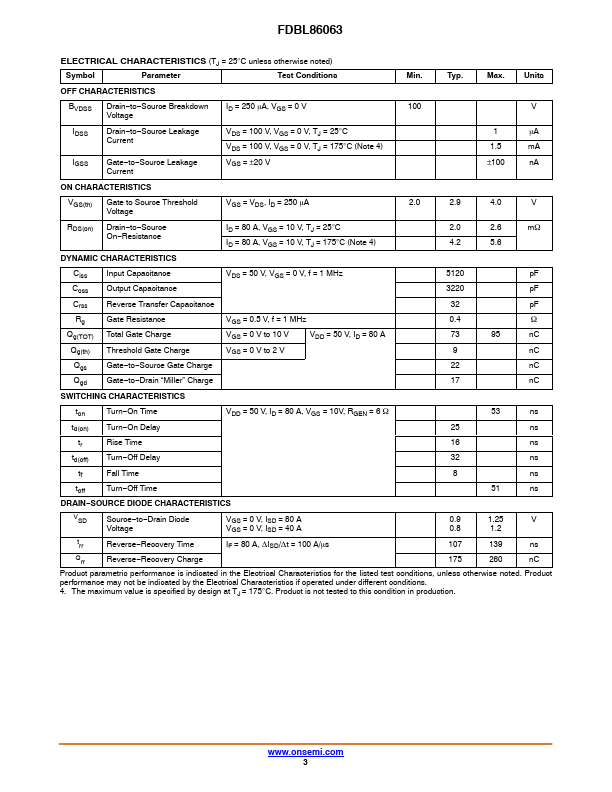

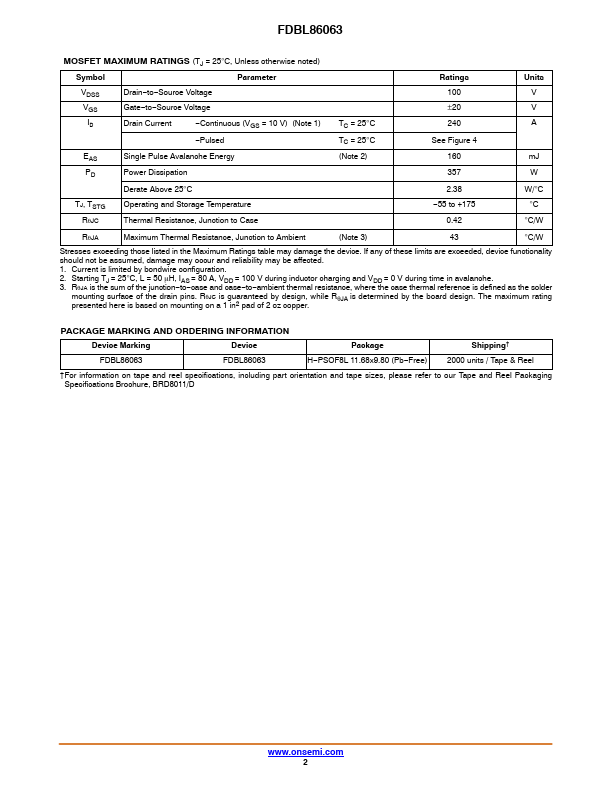

Additional preview pages of the FDBL86063 datasheet.

Product details

Features

Typical RDS(on) = 2 mW at VGS = 10 V, ID = 80 A.
Typical Qg(tot) = 73 nC at VGS = 10 V, ID = 80 A.
UIS Capability.
This Device is Pb.
Free and is RoHS Compliant Typical.
