FDBL86063-F085 - 100V 240A N-Channel MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

FDBL86063-F085 100V 240A N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – FDBL86063-F085

Datasheet Details

Part number	FDBL86063-F085
Manufacturer	ON Semiconductor
File Size	587.10 KB
Description	100V 240A N-Channel MOSFET
Datasheet	FDBL86063-F085 Datasheet

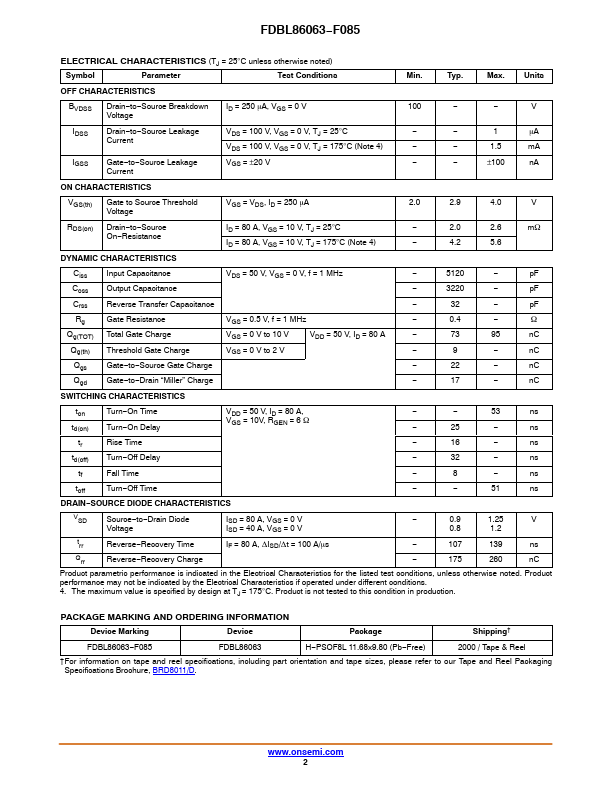

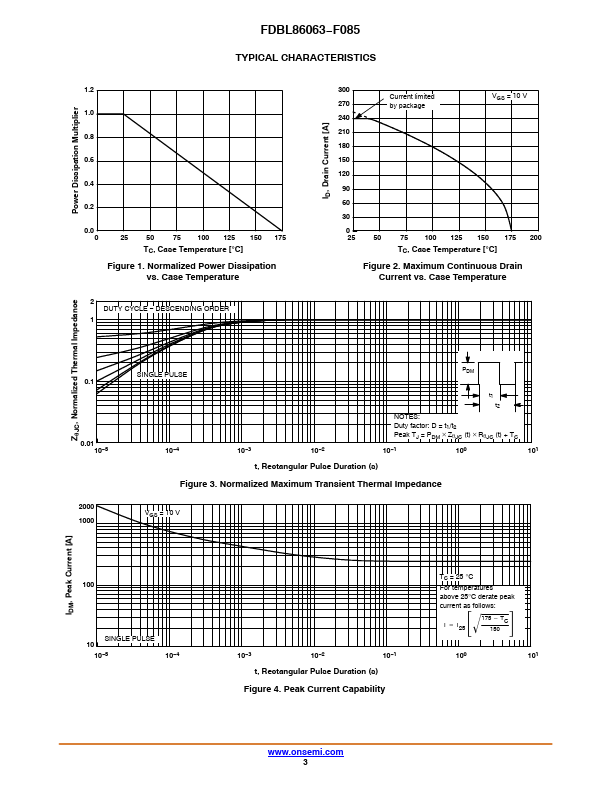

Additional preview pages of the FDBL86063-F085 datasheet.

Product details

Features

Typical RDS(on) = 2 mW at VGS = 10 V, ID = 80 A.
Typical Qg(tot) = 73 nC at VGS = 10 V, ID = 80 A.
UIS Capability.
Qualified to AEC Q101.
These Devices are Pb.
Free, Halogen Free/BFR Free and are RoHS Compliant.
