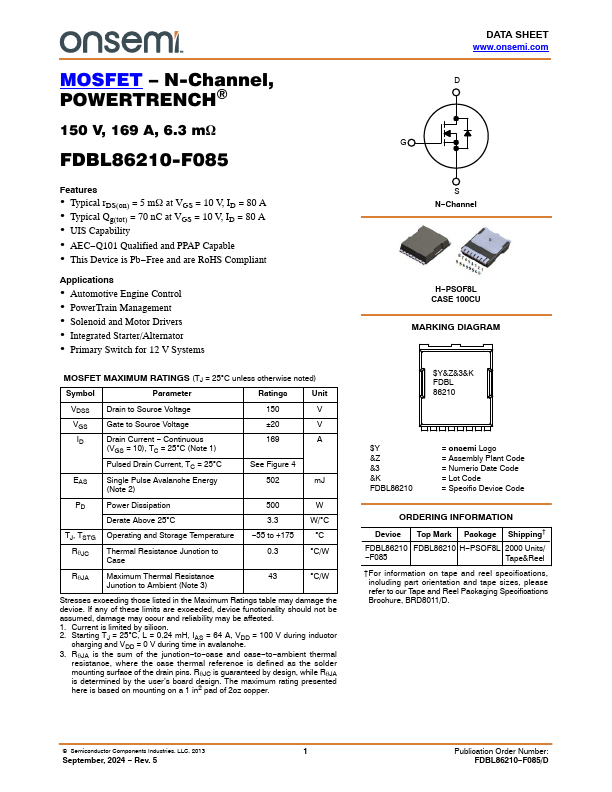

FDBL86210-F085 Datasheet, Mosfet, ON Semiconductor

FDBL86210-F085 Features

• Mosfet
• Typical rDS(on) = 5 mW at VGS = 10 V, ID = 80 A
• Typical Qg(tot) = 70 nC at VGS = 10 V, ID = 80 A
• UIS Capability
• AEC
• Q101 Qualified and PP

PDF File Details

Part number:

FDBL86210-F085

Manufacturer:

ON Semiconductor ↗

File Size:

582.90kb

Download:

📄 Datasheet

Description:

N-channel power mosfet.

FDBL86210-F085 Application

• Applications
• Automotive Engine Control
• PowerTrain Management
• Solenoid and Motor Drivers
• Integrated Starter/A
