FDD86367-F085 - 80V 100A N-Channel MOSFET

ON Semiconductor

The FDD86367-F085 by ON Semiconductor is a 80V 100A N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

FDD86367-F085 80V 100A N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Official preview page of the FDD86367-F085 80V 100A N-Channel MOSFET datasheet (ON Semiconductor).

Datasheet Details

Part number	FDD86367-F085
Manufacturer	ON Semiconductor
File Size	219.03 KB
Description	80V 100A N-Channel MOSFET
Datasheet	FDD86367-F085-ONSemiconductor.pdf

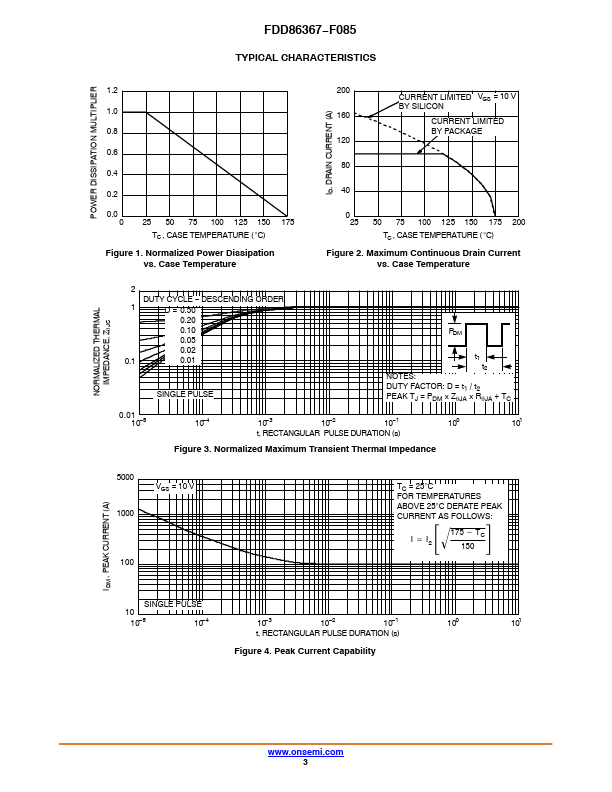

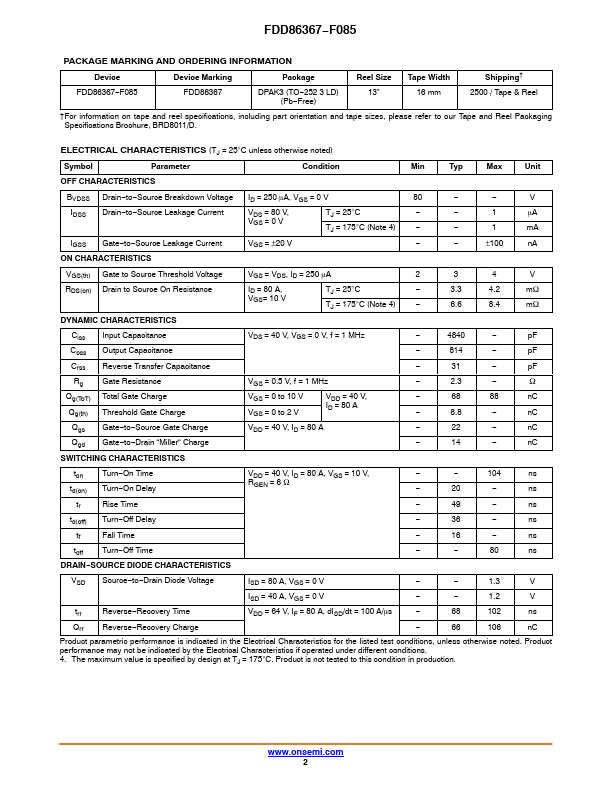

Additional preview pages of the FDD86367-F085 datasheet.

FDD86367-F085 Product details

Features

Typical RDS(on) = 3.3 mW at VGS = 10 V, ID = 80 A.
Typical Qg(tot) = 68 nC at VGS = 10 V, ID = 80 A.
UIS Capability.
AEC.
Q101 Qualified and PPAP Capable.
This Device is Pb.
Free, Halogen Free/BFR Free and is RoHS Compliant.
