FDD86380-F085 - 80V 50A N-Channel MOSFET

Datasheet Summary

Features

  • Typical RDS(on) = 11.2 mΩ at VGS = 10V, ID = 50 A.
  • Typical Qg(tot) = 20 nC at VGS = 10V, ID = 50 A.
  • UIS Capability.
  • RoHS Compliant.
  • Qualified to AEC Q101.

📥 Download Datasheet

Datasheet preview – FDD86380-F085

Datasheet Details

Part number FDD86380-F085
Manufacturer ON Semiconductor
File Size 447.28 KB
Description 80V 50A N-Channel MOSFET
Datasheet download datasheet FDD86380-F085 Datasheet

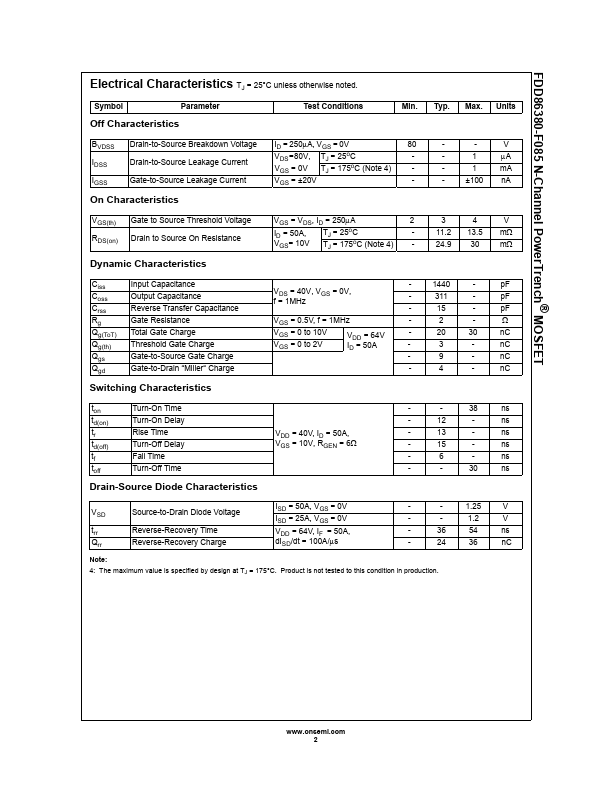

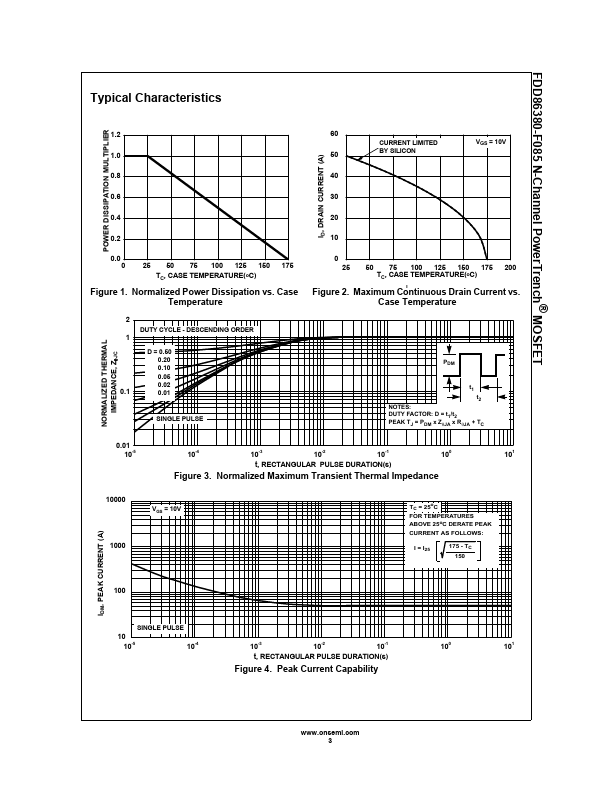

Additional preview pages of the FDD86380-F085 datasheet.

📁 Similar Datasheet

  • FDD86326 - N-Channel MOSFET (Fairchild Semiconductor)
  • FDD86367_F085 - MOSFET (Fairchild Semiconductor)
  • FDD86369 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • FDD86369_F085 - MOSFET (Fairchild Semiconductor)
  • FDD86102 - N-Channel MOSFET (Fairchild Semiconductor)
  • FDD86102LZ - N-Channel MOSFET (Fairchild Semiconductor)
  • FDD86102LZ - N-Channel MOSFET (INCHANGE)
  • FDD86110 - N-Channel MOSFET (Fairchild Semiconductor)
  • FDD86113LZ - N-Channel MOSFET (Fairchild Semiconductor)
  • FDD86250 - N-Channel MOSFET (Fairchild Semiconductor)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

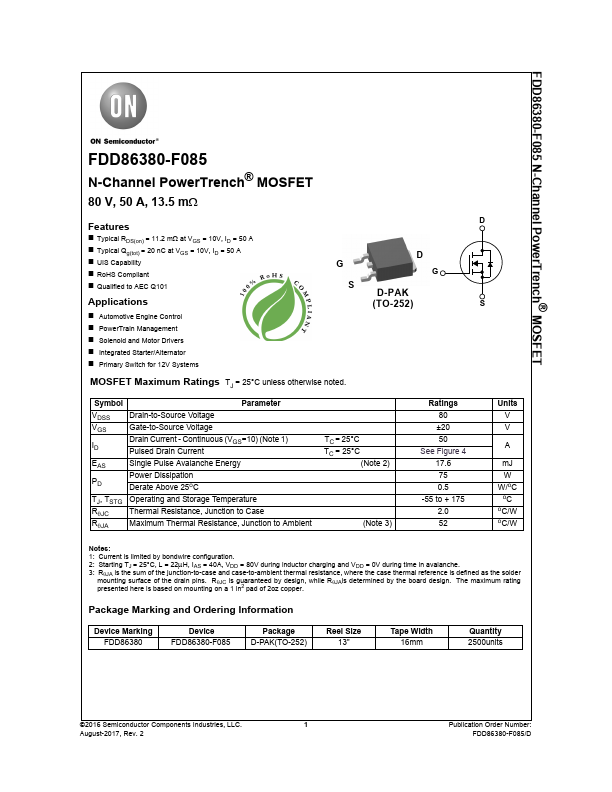

FDD86380-F085 N-Channel PowerTrench® MOSFET FDD86380-F085 N-Channel PowerTrench® MOSFET 80 V, 50 A, 13.5 mΩ Features „ Typical RDS(on) = 11.2 mΩ at VGS = 10V, ID = 50 A „ Typical Qg(tot) = 20 nC at VGS = 10V, ID = 50 A „ UIS Capability „ RoHS Compliant „ Qualified to AEC Q101 Applications „ Automotive Engine Control „ PowerTrain Management „ Solenoid and Motor Drivers „ Integrated Starter/Alternator „ Primary Switch for 12V Systems D D G G S DTO-P-2A5K2 (TO-252) S MOSFET Maximum Ratings TJ = 25°C unless otherwise noted.
