FDD9409-F085 - 40V 90A N-Channel MOSFET

FDD9409-F085 Description

FDD9409-F085 N-Channel PowerTrench® MOSFET FDD9409-F085 N-Channel PowerTrench® MOSFET D 40 V, 90 A, 3.2 mΩ .

FDD9409-F085 Features

* Typ RDS(on) = 2.3mΩ at VGS = 10V, ID = 80A
* Typ Qg(tot) = 42nC at VGS = 10V, ID = 80A
* UIS Capability
* RoHS Compliant

FDD9409-F085 Applications

* Automotive Engine Control
* Powertrain Management
* Solenoid and Motor Drivers
* Electronic Steering
* Integrated Starter/Alternator
* Distributed Power Architectures and VRM
* Primary Switch for 12V Systems MOSFET Maximum Ratings TJ

📥 Download Datasheet

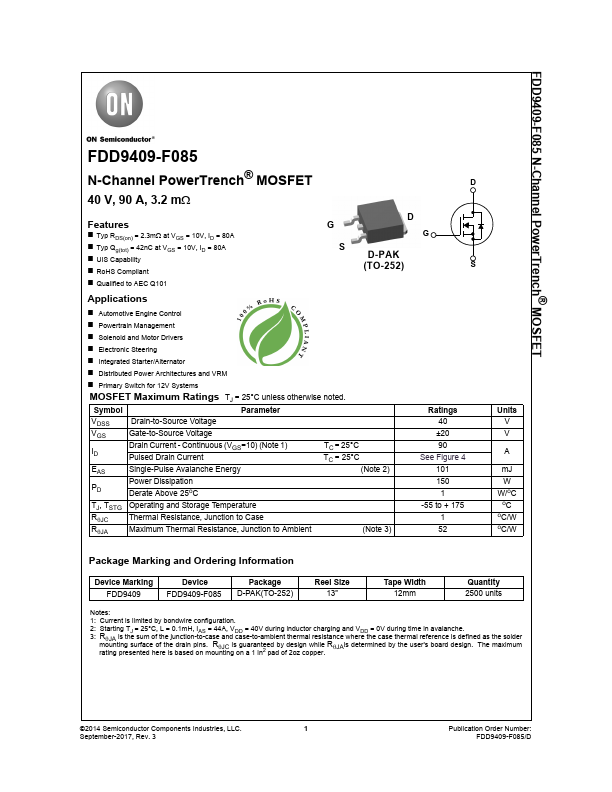

Preview of FDD9409-F085 PDF

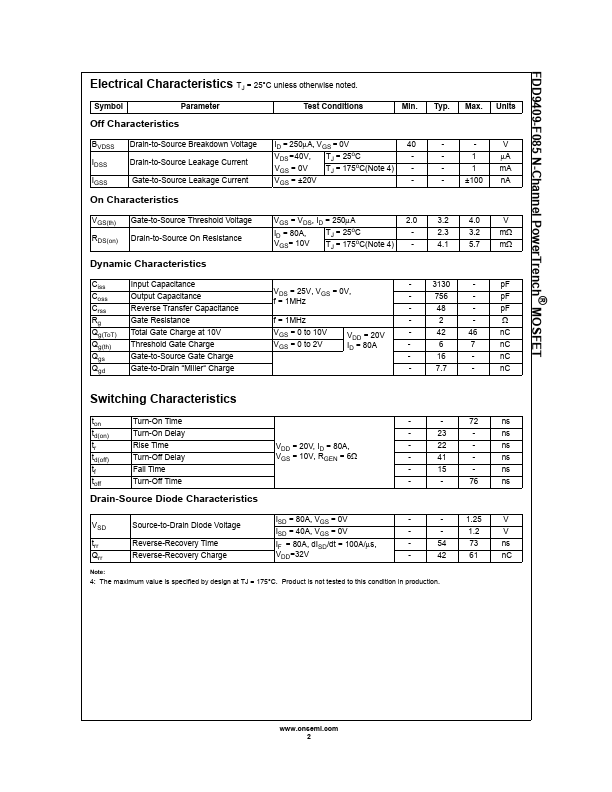

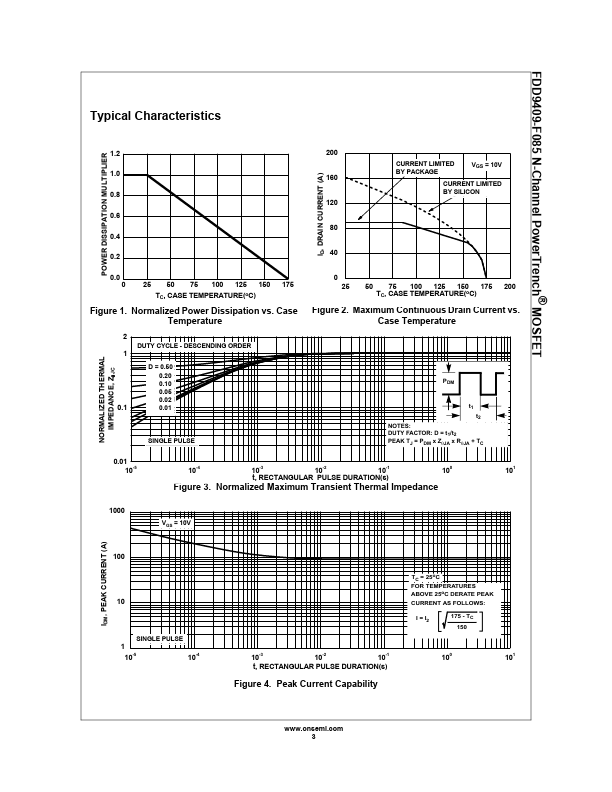

datasheet Preview Page 2 datasheet Preview Page 3
