FDL100N50F - N-Channel MOSFET

ON Semiconductor

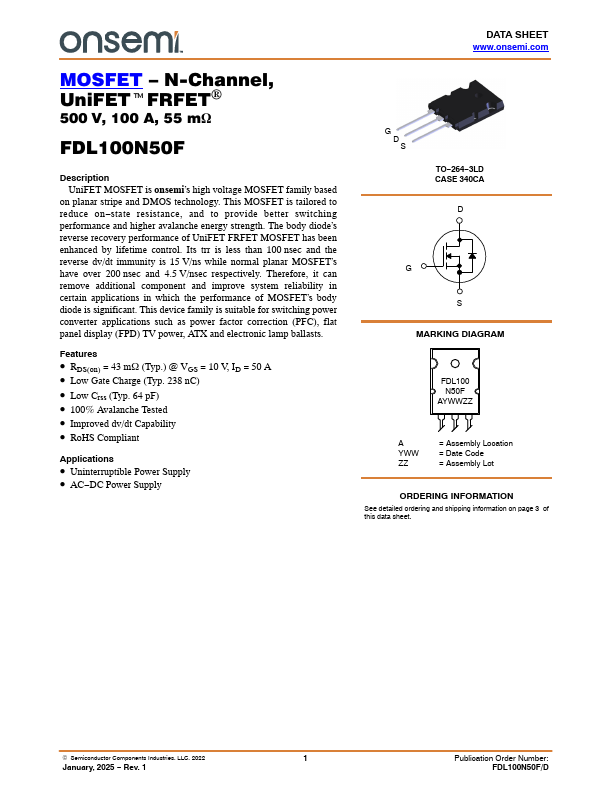

FDL100N50F Datasheet Preview — Preview of FDL100N50F PDF

Datasheet Details

Part number	FDL100N50F
Manufacturer	ON Semiconductor ↗
File Size	455.50 KB
Description	N-Channel MOSFET
Datasheet	FDL100N50F-ONSemiconductor.pdf

FDL100N50F Product details

Description

UniFET MOSFET is onsemi's high voltage MOSFET family based on planar stripe and DMOS technology.This MOSFET is tailored to reduce on state resistance, and to provide better switching performance and higher avalanche energy strength.

Features

RDS(on) = 43 mW (Typ. ) @ VGS = 10 V, ID = 50 A.
Low Gate Charge (Typ. 238 nC).
Low Crss (Typ. 64 pF).
100% Avalanche Tested.
Improved dv/dt Capability.
RoHS Compliant.
