FDMF6704 - High-Frequency DrMOS Module

Product Overview

ON Semiconductor

Datasheet Details

Part number	FDMF6704
Manufacturer	ON Semiconductor
File Size	919.58 KB
Description	High-Frequency DrMOS Module
Datasheet	FDMF6704 Datasheet

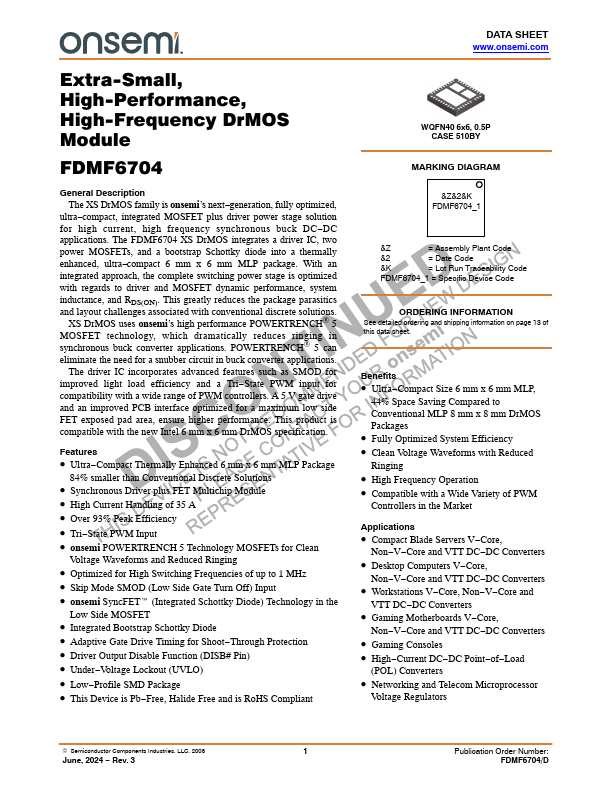

Additional preview pages of the FDMF6704 datasheet.

Product details

Description

The XS DrMOS family is onsemi’s next generation, fully optimized, ultra compact, integrated MOSFET plus driver power stage solution for high current, high frequency synchronous buck DC DC applications. compact 6 mm x 6 mm MLP package.

Features

such as SMOD for improved light load efficiency and a Tri.
State PWM input for compatibility with a wide range of PWM controllers. A 5 V gate drive and an improved PCB interface optimized for a maximum low side FET exposed pad area, ensure higher performance. This product is compatible with the new Intel 6 mm x 6 mm DrMOS specification. Features.
Ultra.
Compact Thermally Enhanced 6 mm x 6 mm MLP Package 84% smaller than Conventional Discrete Solutions.
Synchronous.
