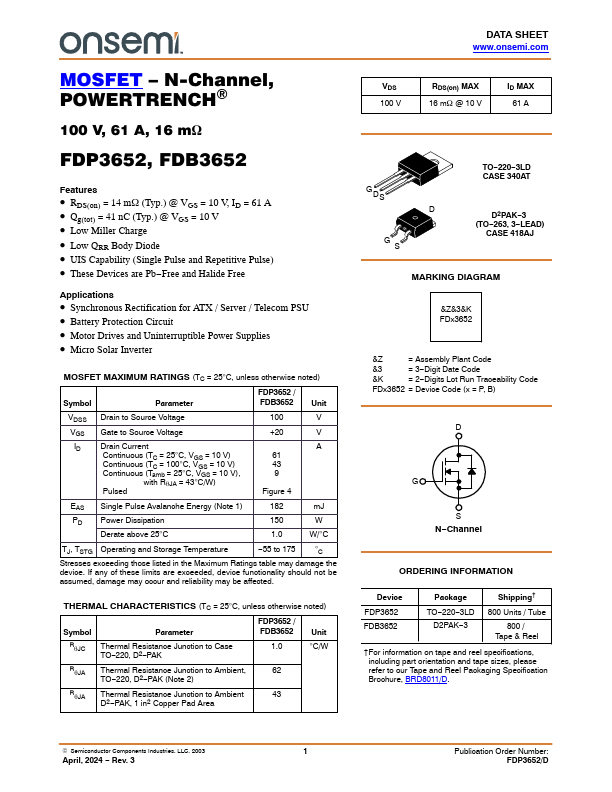

FDP3652
Features
- RDS(on) = 14 m W (Typ.) @ VGS = 10 V, ID = 61 A
- Qg(tot) = 41 n C (Typ.) @ VGS = 10 V
- Low Miller Charge
- Low QRR Body Diode
- UIS Capability (Single Pulse and Repetitive Pulse)
- These Devices are Pb- Free and Halide Free
Applications
- Synchronous Rectification for ATX / Server / Tele PSU
- Battery Protection Circuit
- Motor Drives and Uninterruptible Power Supplies
- Micro Solar Inverter
MOSFET MAXIMUM RATINGS (TC = 25°C, unless otherwise noted)
Symbol
Parameter
FDP3652 / FDB3652 Unit
VDSS Drain to Source Voltage
VGS Gate to Source Voltage
+20
Drain Current
Continuous (TC = 25°C, VGS = 10 V)
Continuous (TC = 100°C, VGS = 10 V)
Continuous (Tamb = 25°C, VGS = 10 V),
9 with Rq JA = 43°C/W)
Pulsed

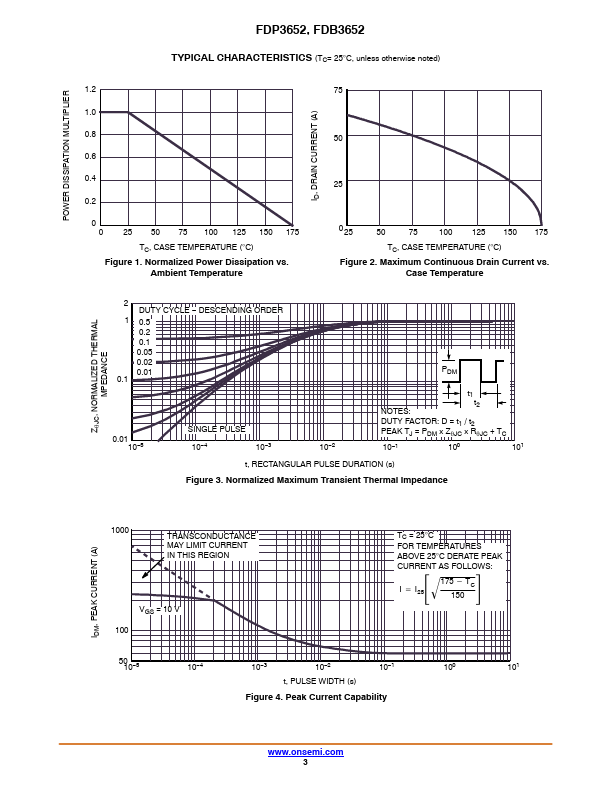

Figure 4
EAS Single Pulse Avalanche Energy (Note 1) PD Power Dissipation
Derate above 25°C
182 m J
W/°C
TJ, TSTG Operating and Storage Temperature
- 55 to...
